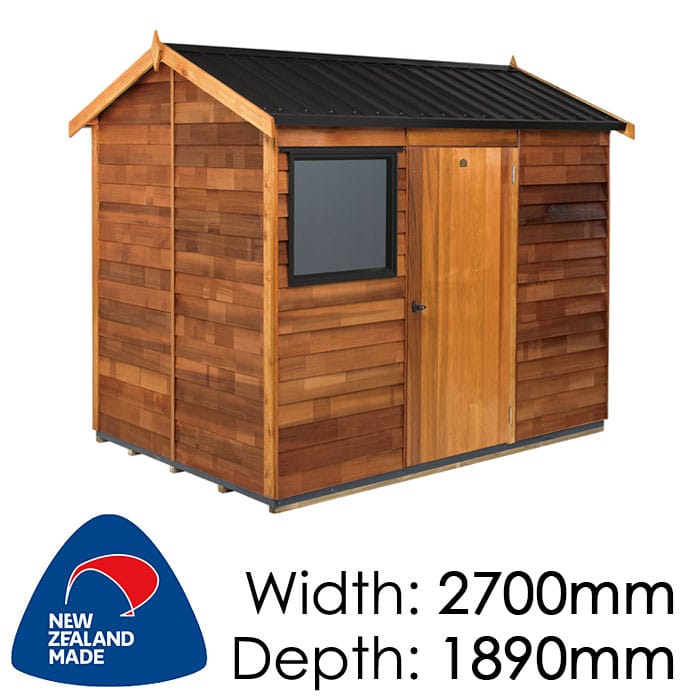

Finger Jointed Cedar Logan Timber Garden Shed

Customisation & Layout Flexibility

The Finger Jointed Cedar Logan Timber Garden Shed is built using a modular panel system, giving you flexibility during installation and future reconfiguration. This design allows you to tailor the shed to your site and how you plan to use it.

• Door positioned on the long side to create generous internal workspace and storage layout.
• Modular panels allow reconfiguration of door and window positions to better suit your site and access needs.
• Choose from fixed or opening windows in aluminium or timber frames, and vary the number of windows to control light and airflow.
• Select a rustic shingle or contemporary colour steel roof finish, with multiple colour options available.
• Optional clear light roof panel increases natural light for working inside during the day.
• Internal framing makes it straightforward to add shelving, a workbench, or services such as an e-bike charger.

Optional Accessories & Upgrades

Enhance the functionality, comfort, and security of your Finger Jointed Cedar Logan Timber Garden Shed with a range of purpose-designed accessories.

• Logan Wood Floor Kit
  Precut runners and floorboards provide a strong, dedicated timber floor, making the shed easier to install and more comfortable to use.
• Bolt Down Kit
  Secure the shed to a concrete pad or other solid surface for added stability and wind resistance.
• Peg Down Kit
  Anchors the shed when installing on suitable ground, helping to keep the building firmly in place.
• Fixed Aluminium Windows (1, 2, or 3 units)
  Add natural light with low-maintenance aluminium-framed fixed windows.
• Opening Aluminium Windows (1, 2, or 3 units)
  Improve ventilation and comfort inside the shed with aluminium windows that can be opened.
• Fixed Timber Windows (1, 2, or 3 units)
  Timber-framed fixed windows to complement the cedar cladding and bring in light.
• Building Paper Colour (Black or White)
  Choose the internal building paper colour to suit your preference or lining plans.
• Work Bench
  Creates a dedicated workspace inside the shed for gardening, DIY, or hobby projects.
• Shelf Units (1.2m, 1.8m, or 2.4m)
  Organise tools, supplies, and small items with robust shelving in a range of lengths.
• Clear Light Roof Panel
  Lets additional daylight into the shed through the roof, reducing reliance on artificial lighting.
• Roof Finish – Rustic or Contemporary
  Choose between a rustic shingle roof or a contemporary pre-painted colour steel roof in Karaka, Ironsand, Greyfriars, or Ebony.

Construction & DIY Information

These sheds are designed to be DIY projects, however we also offer a full install service at fixed prices should you prefer someone else to do this for you. Typically a shed of this size would take one of the installers we use *one day*. See shed options for pricing.

The Finger Jointed Cedar Logan Timber Garden Shed is designed with DIY assembly in mind, using a modular panel system with treated framing clad in cedar weatherboards. Components and hardware are supplied so that a competent DIYer can assemble the shed methodically on a prepared, level base.

DIY Difficulty Rating

• Straightforward for someone with good DIY skills
• Allow around a day and a half for installation for a competent DIYer

Construction Overview

• Modular wall panels with treated framing and cedar cladding are joined with silicone and bolts.
• Beads are siliconed and nailed into place.
• Roof sheets and flashings are screwed to the shed, or a premade shingle roof is fitted.
• The solid door is hung and hardware fitted to complete the build.
• Optional floor kit consists of precut runners and floorboards that can be nailed together with basic tools.

Recommended Tools

• Power drill
• 3.2mm drill bits
• 3/8" hex drive
• Riveter
• Hammer
• Flathead screwdriver
• Nail punch
• Tape measure
• Ladder or saw stool
• Level
• Caulking gun
• String line or suitable length of string
• Skillsaw or jigsaw/multitool (for cutting floor components if required)
• Masonry drill and 10mm masonry bit (for use with Bolt Down Kit only)

Assembly Instructions

For the latest, most detailed assembly instructions, please refer to the official instruction manual provided by the supplier.
