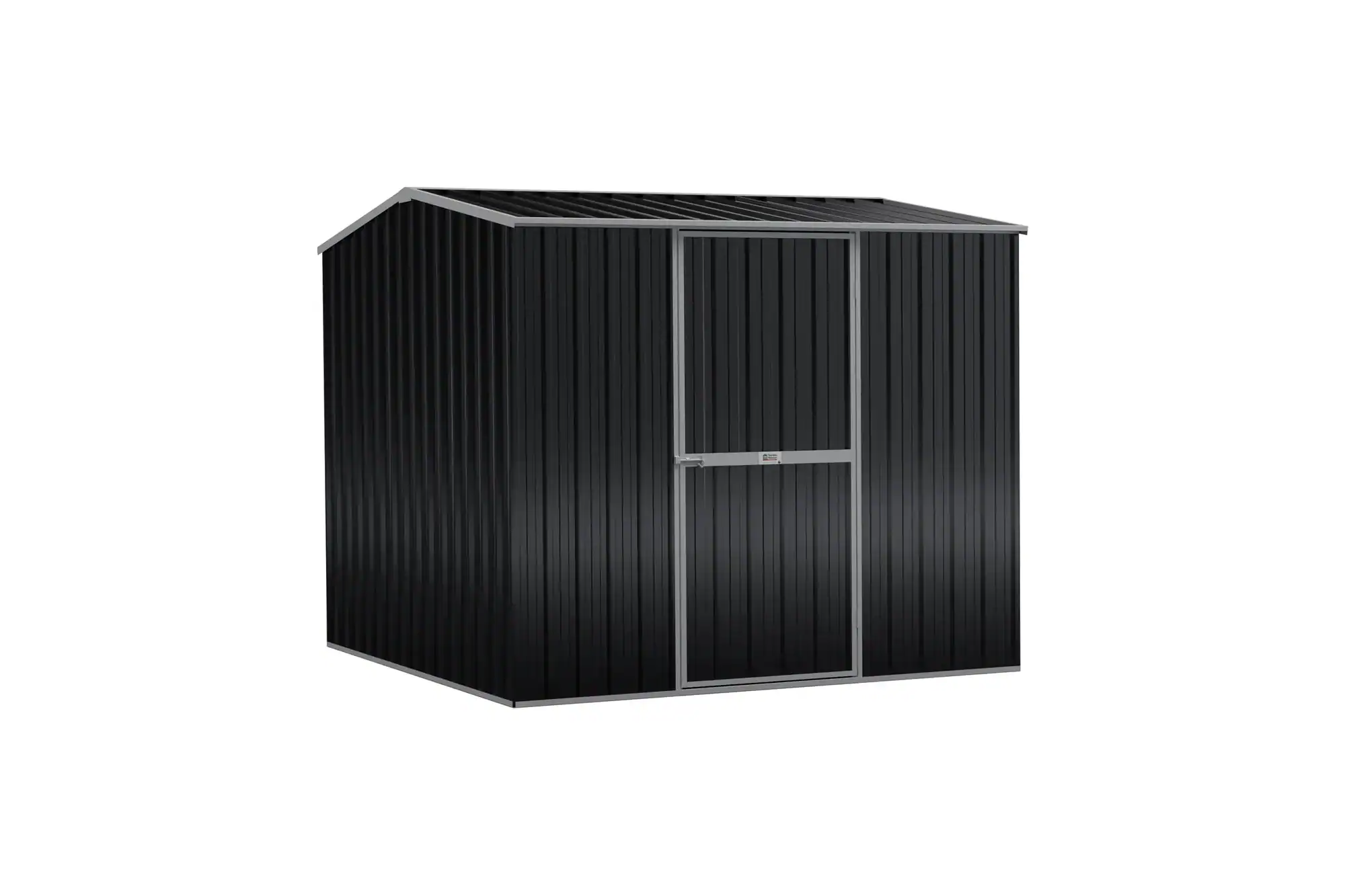

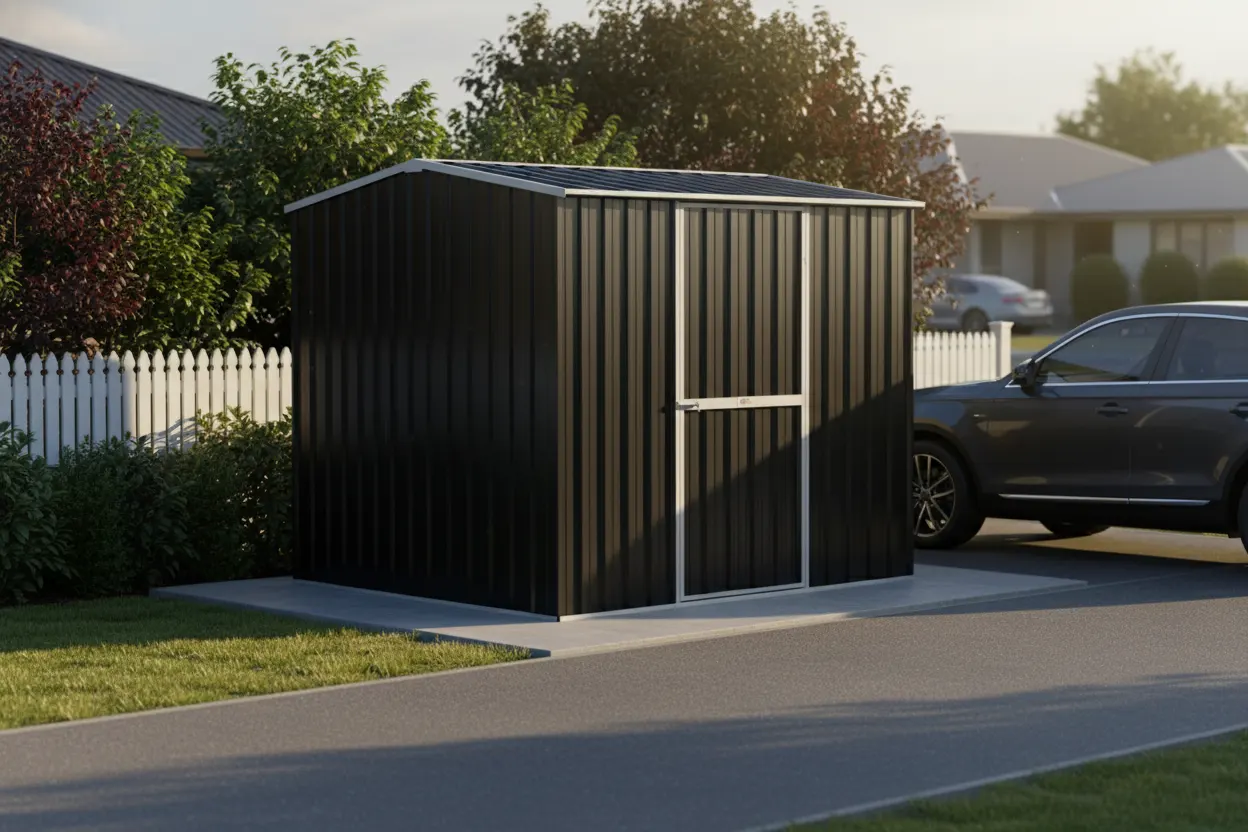

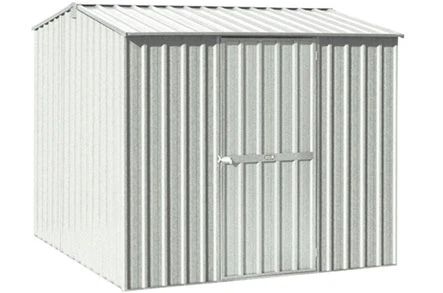

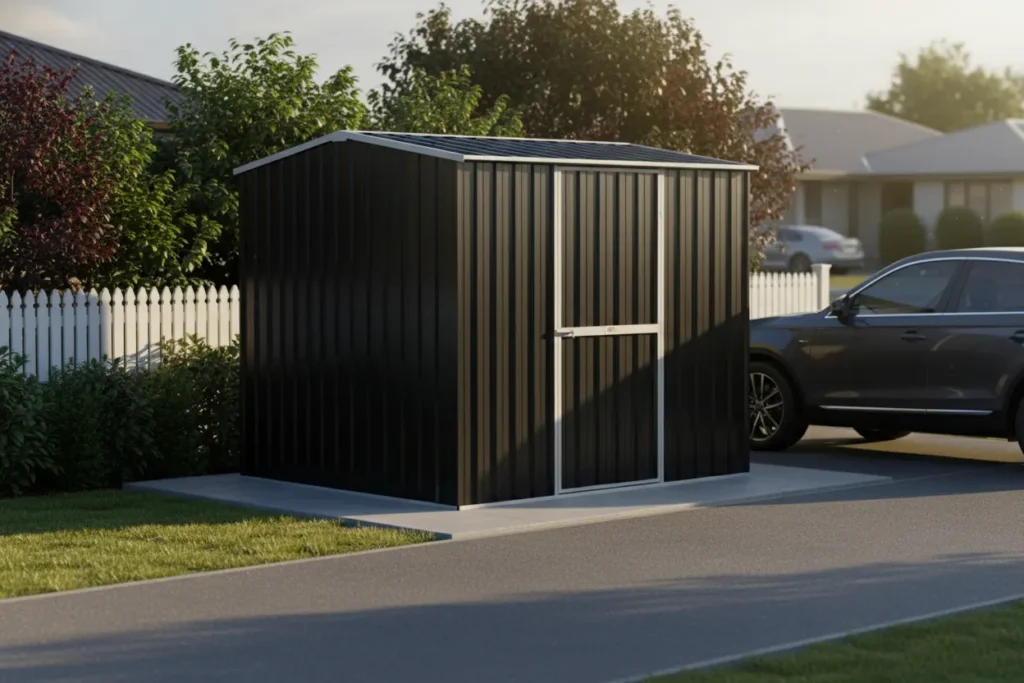

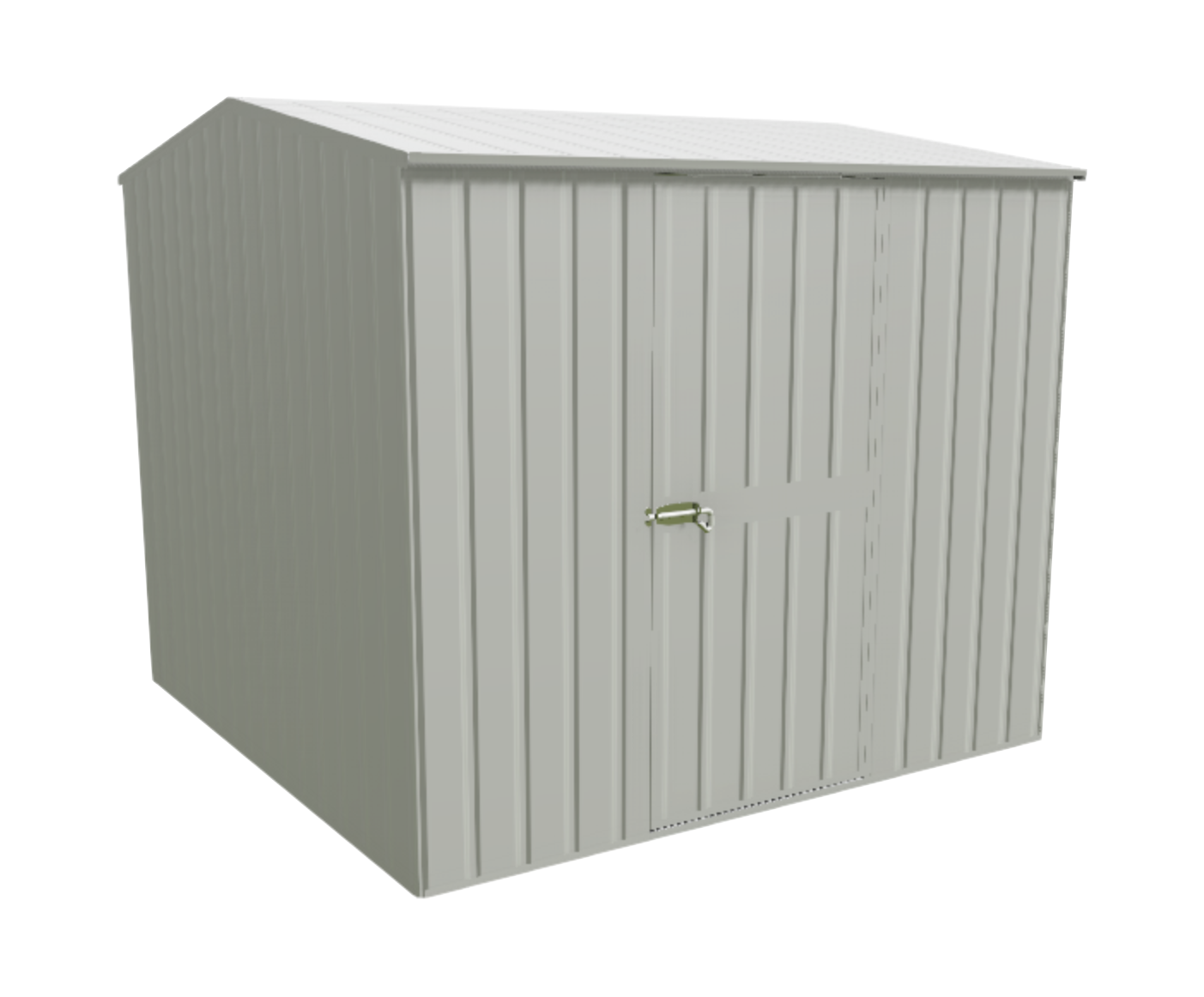

Garden Master GM2323 Garden Shed

Customisation & Layout Options

The Garden Master GM2323 Garden Shed is highly configurable, allowing you to adapt it to your site, access needs, and preferred look.

Door Configuration & Placement

• Choose between a single door (included) or double doors for wider access.

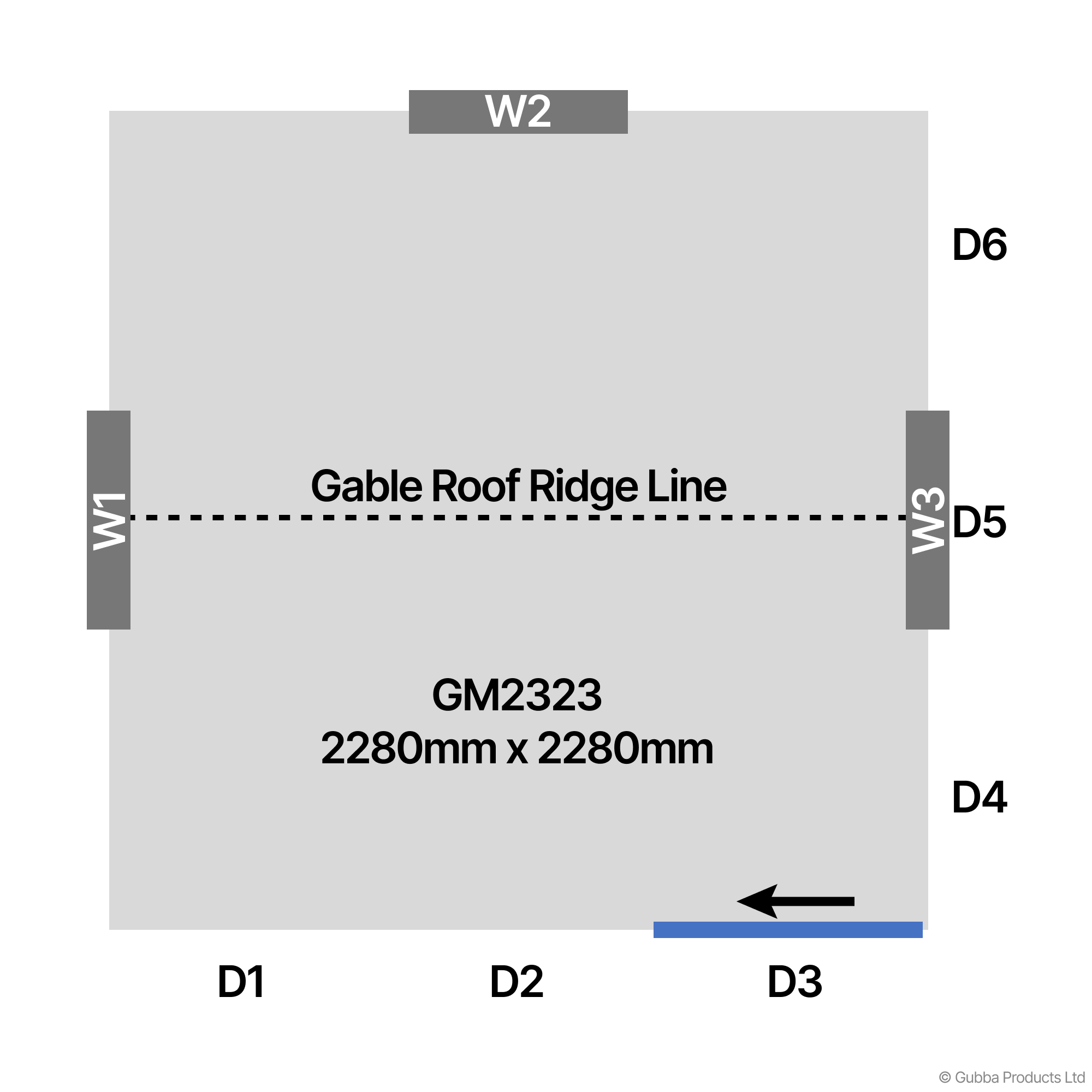

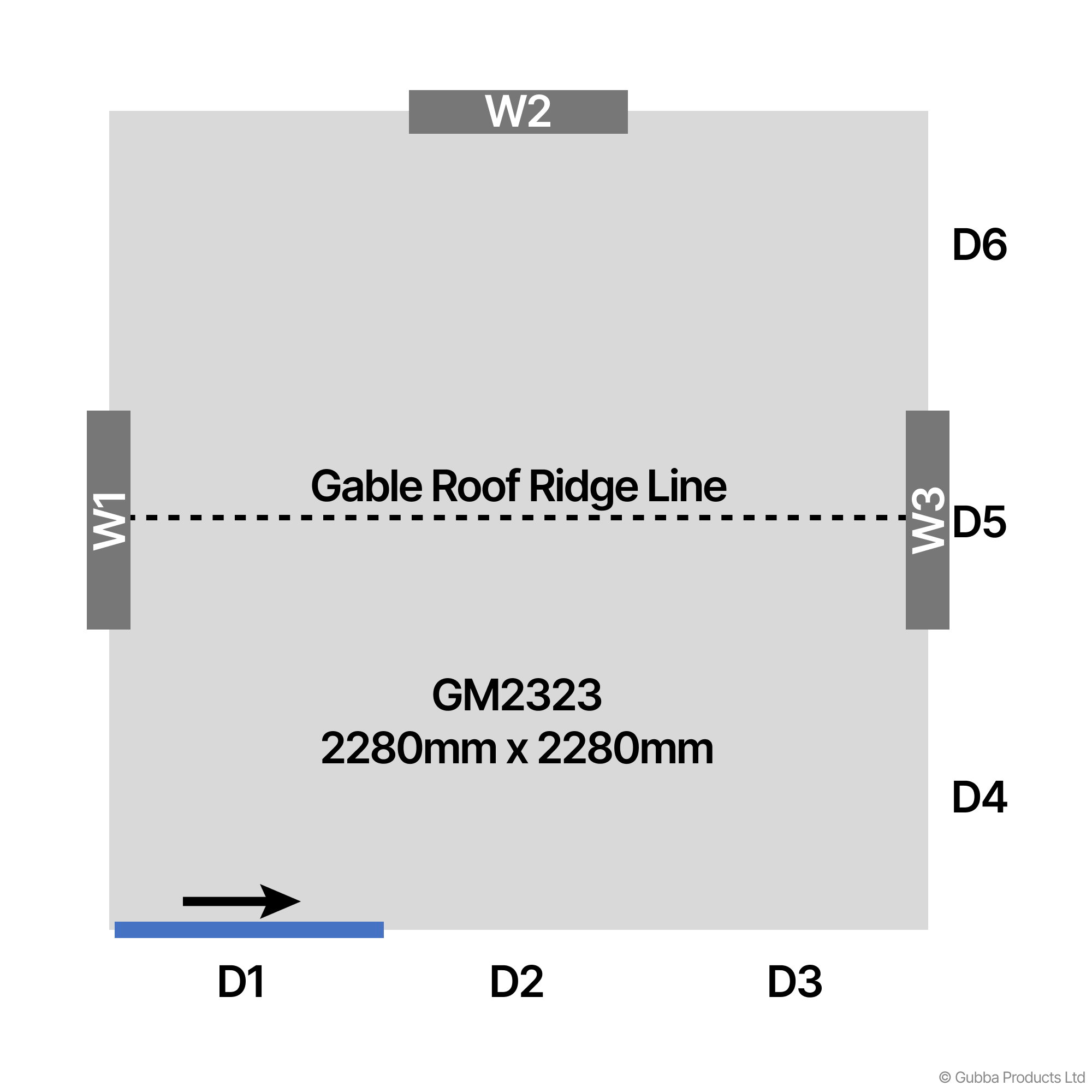

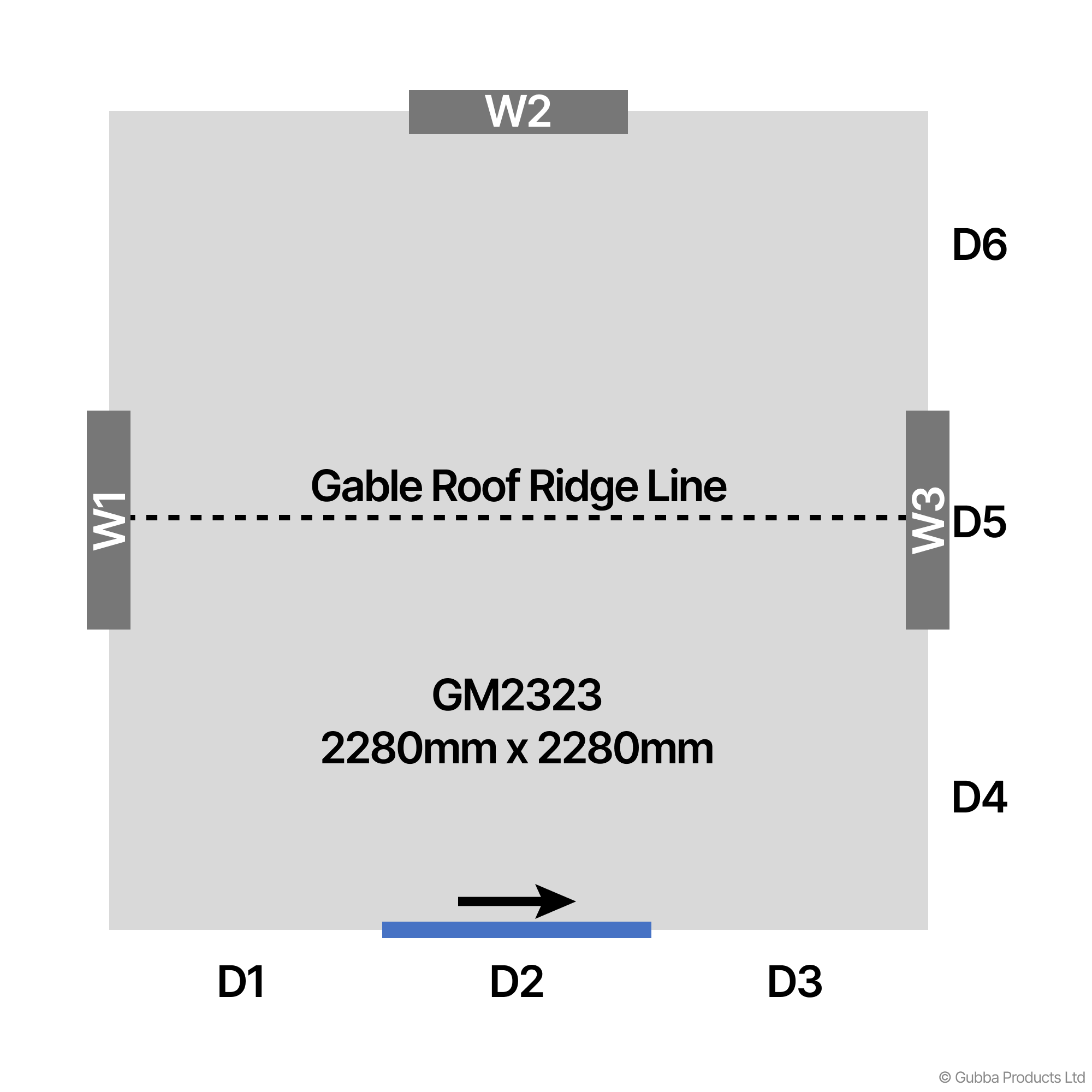

• Select hinged (standard) or sliding doors (upgrade) to suit tight spaces or limited access areas.

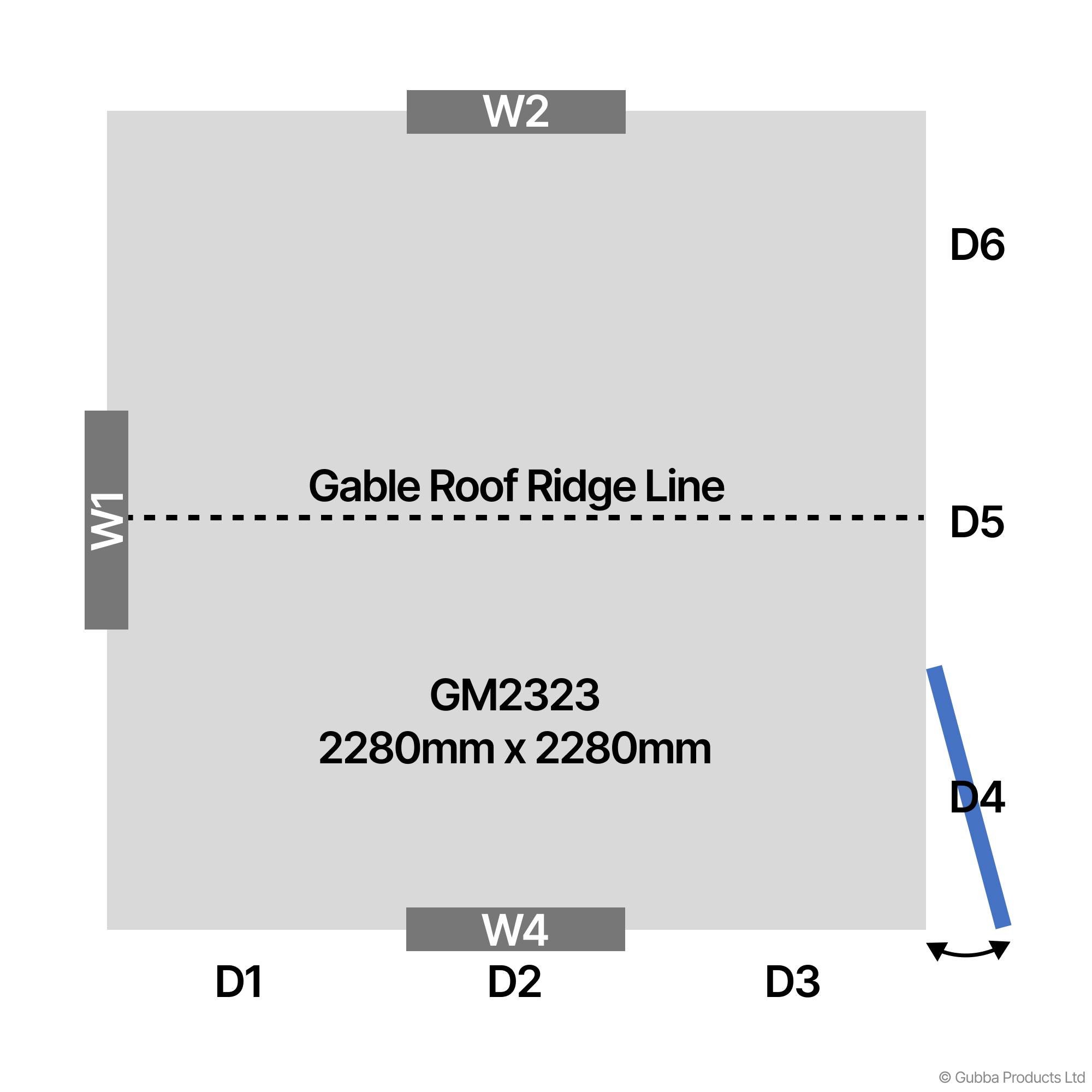

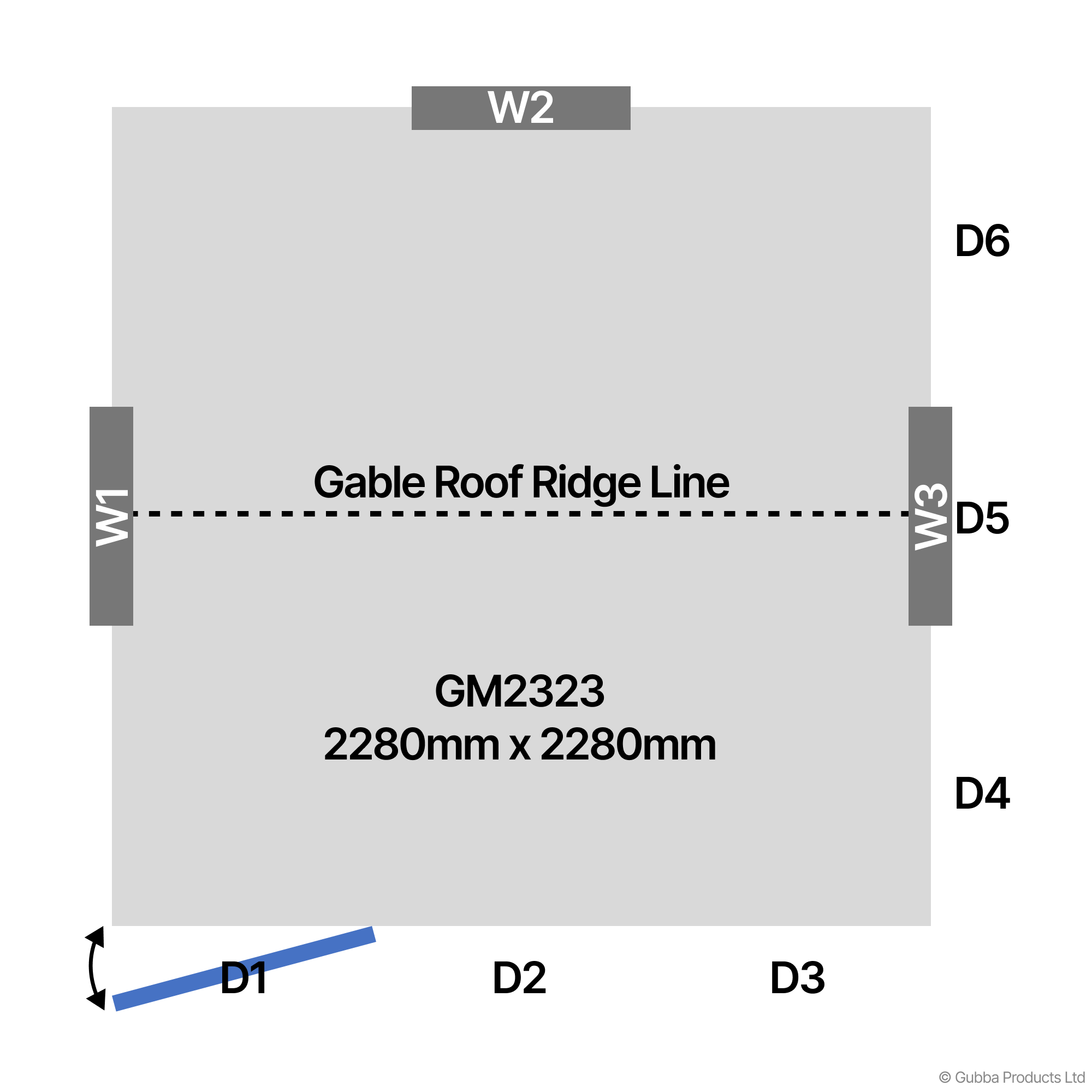

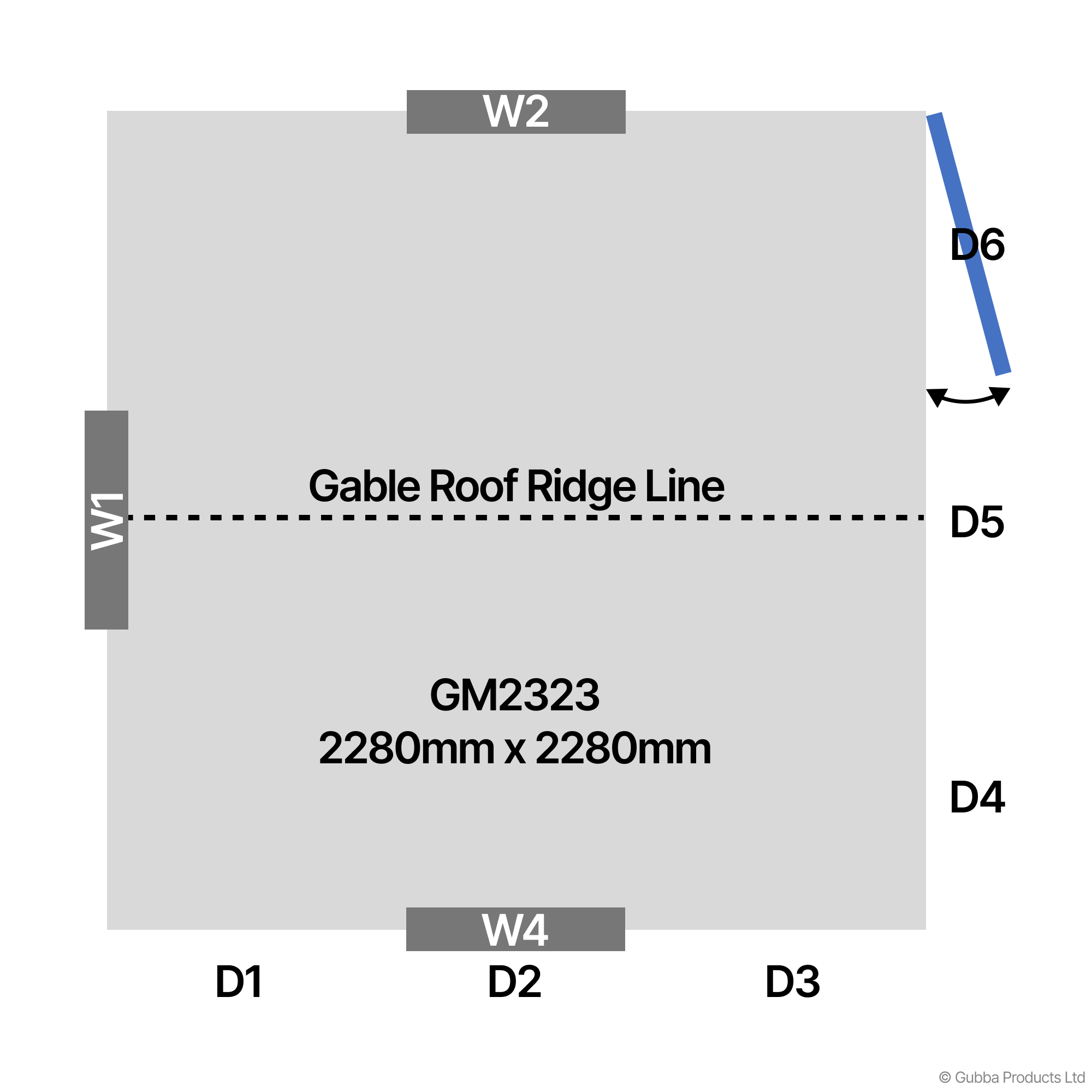

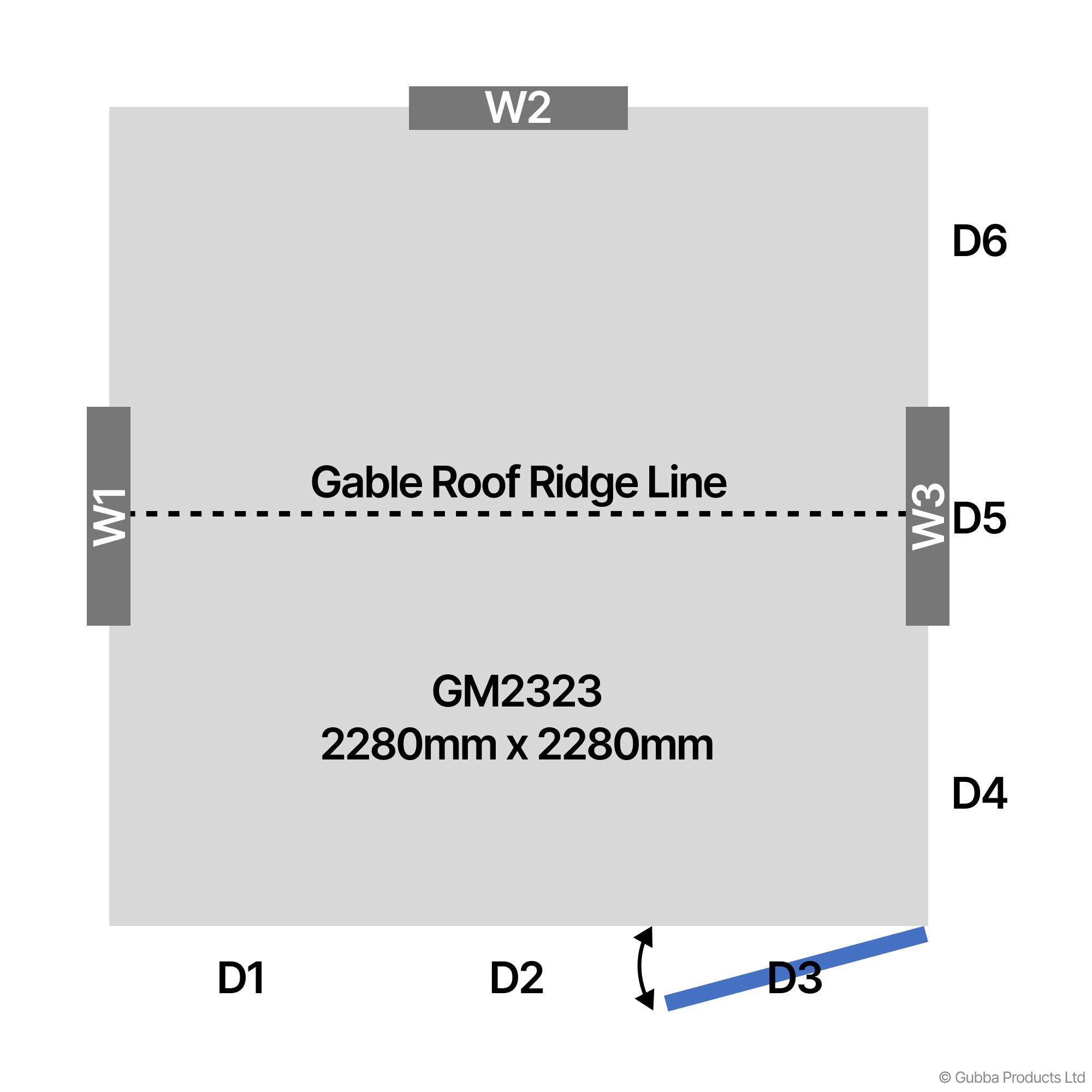

• Change the door location from the default position to a long wall or end wall so the entry lines up with paths, fences, or open space.
• Add extra single or double doors and adjust their locations for multiple convenient entry points.

Window & Light Placement

• Add louvre windows to the front, sides, or back of the shed to bring light and airflow exactly where you need it.
• Include one or two skylite roof sheets to channel overhead natural light into the main working area of the shed.

Wall Height & Internal Space

• Increase the wall height by +150mm or +300mm to gain extra headroom for taller users or to store long-handled tools and bulky items more comfortably.

Colour Customisation

• Independently choose colours for the walls, roof, trims, and door from a wide selection, or keep the shed in Alu-Zinc for a classic steel finish.

Together, these options let you position doors and windows for sunlight and access, adjust the internal volume, and fine-tune the appearance so the shed works efficiently in your specific backyard layout.

Accessories & Add‑Ons

Enhance the usefulness, security, and comfort of your Garden Master GM2323 Garden Shed with a wide range of factory-backed options.

Flooring & Fixing Options

• GM2323 Wood Floor Kit – Precut runners and floorboards that can be nailed together to create a dedicated timber floor for your shed.
• Concrete Floor Bolt Down Package (Flat or Recessed) – Kits of 8 bolts for securing the shed to a concrete pad, helping keep it firmly anchored.

Structural & Framing Upgrades

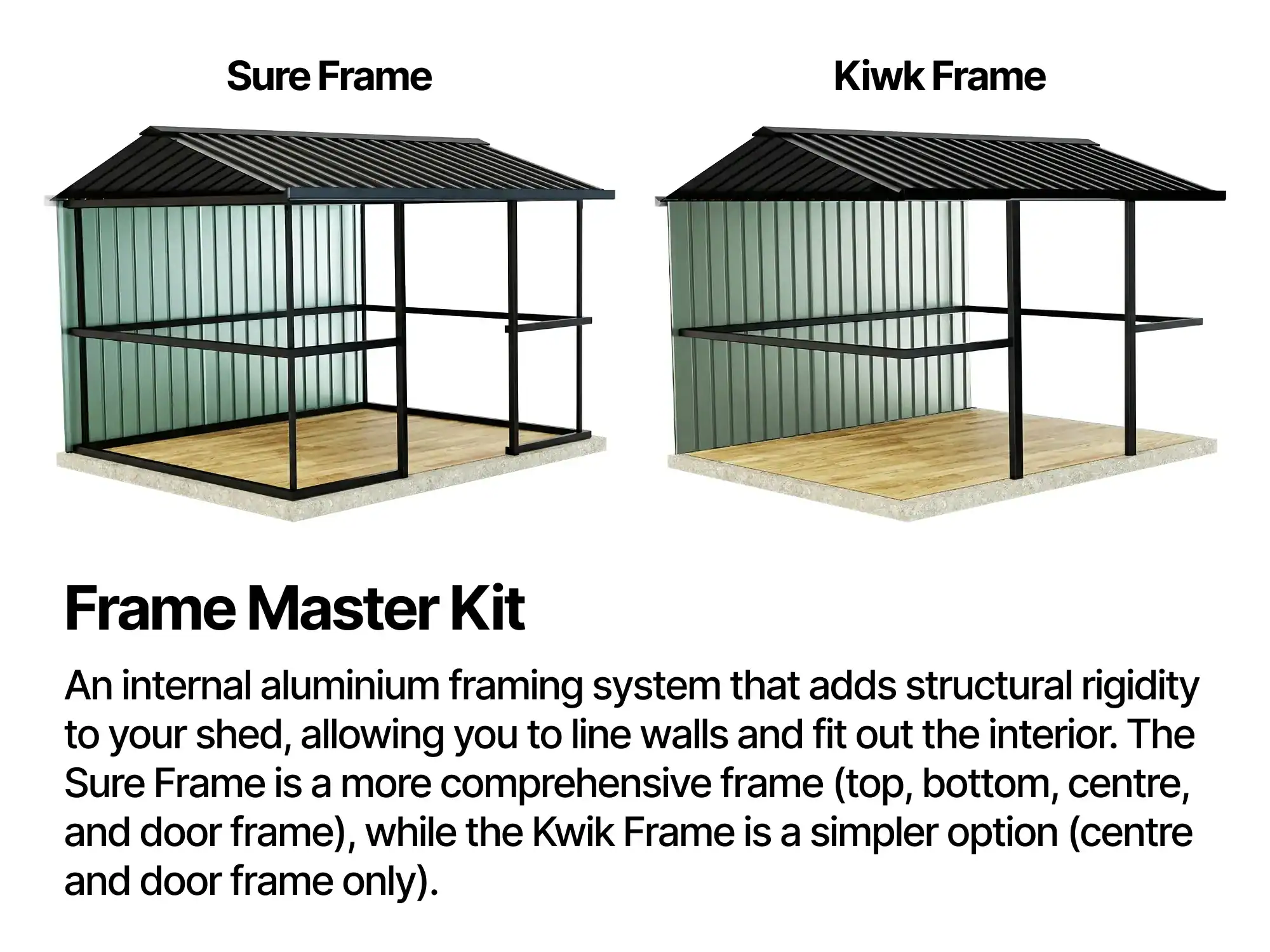

• Frame Master Kit – Sure Frame or Kwik Frame – Framing kits designed to work with the shed for additional rigidity and support.

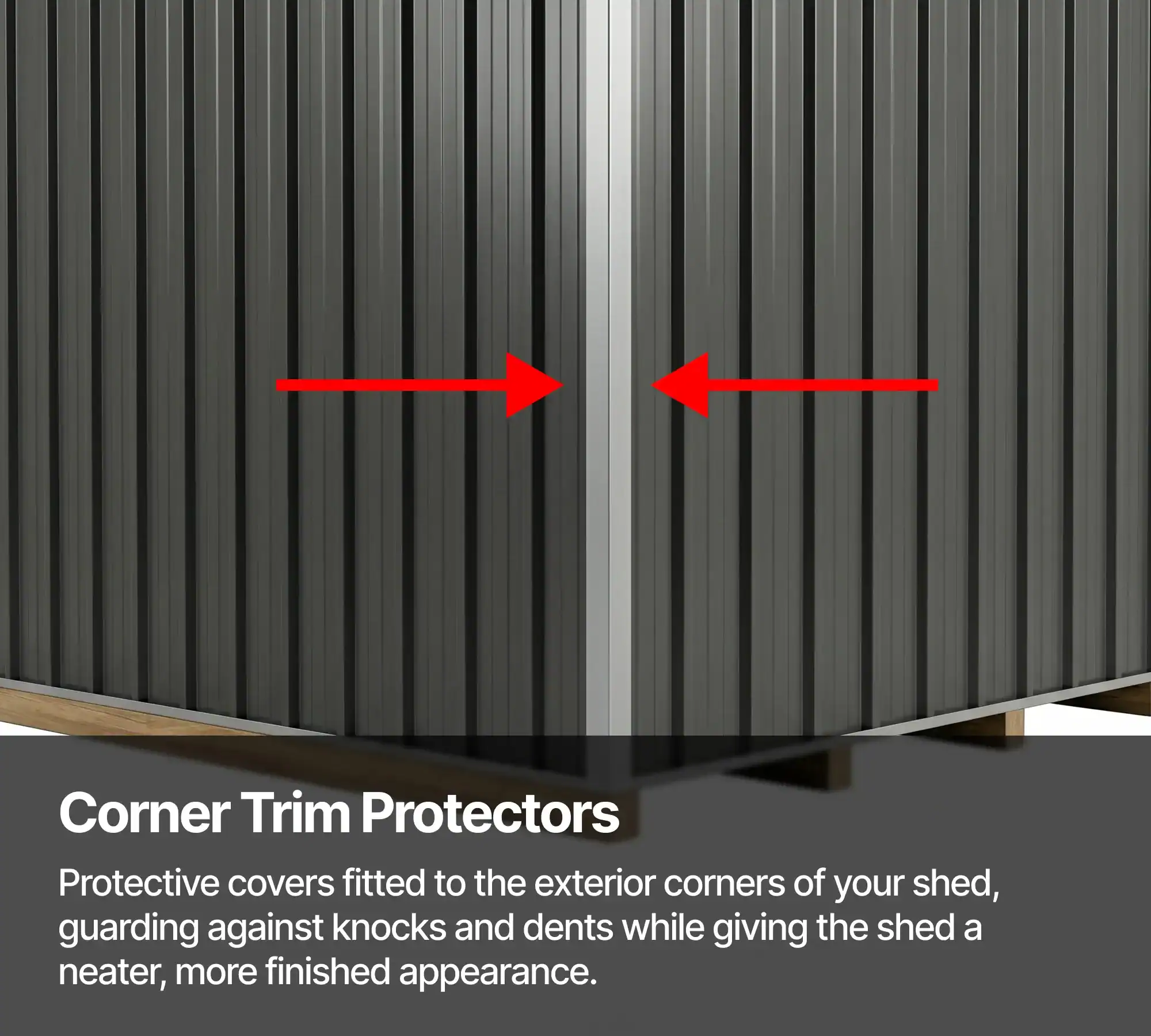

• Corner Flashing Upgrade – Enhanced corner trims for a neater finish and added edge protection compared with standard corners.

Door Options & Hardware

• Single or Double Door – Choose the standard single door or upgrade to double doors for wider access.
• Hinged or Sliding Door – Standard hinged door or upgrade to a sliding door, ideal where space in front of the shed is limited.
• Door Location Change – Move the main door to a different wall position to better suit your site layout.
• Extra Door (Single or Double) – Add additional doors for more convenient entry points.
• Extra Door Location Change – Adjust the position of added doors to match your access requirements.
• Cabin Hooks – Keep doors secured in the open position for easier access and safer loading.

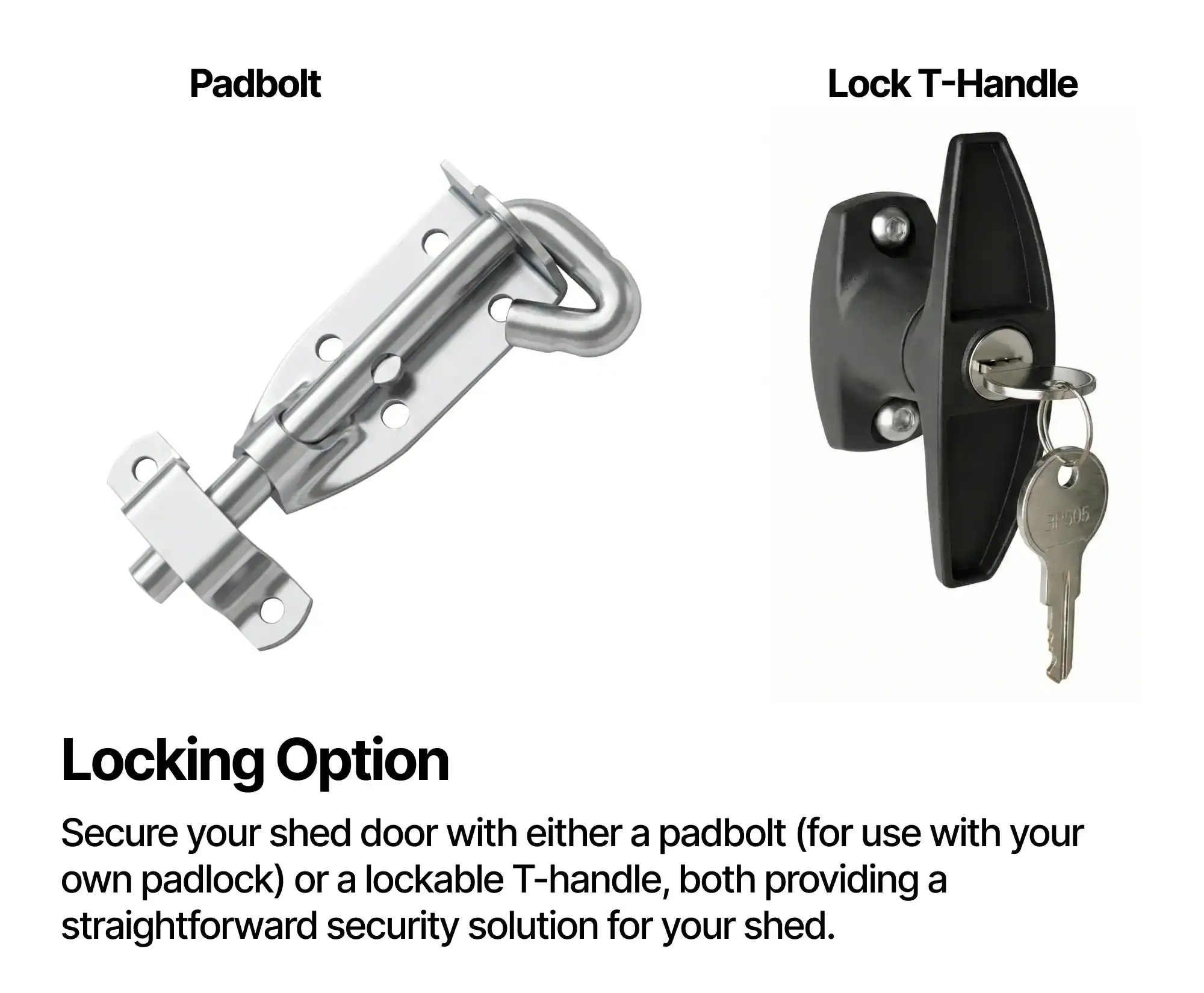

• Locking T-Handle – Upgraded keyed handle for easier operation and improved access control.

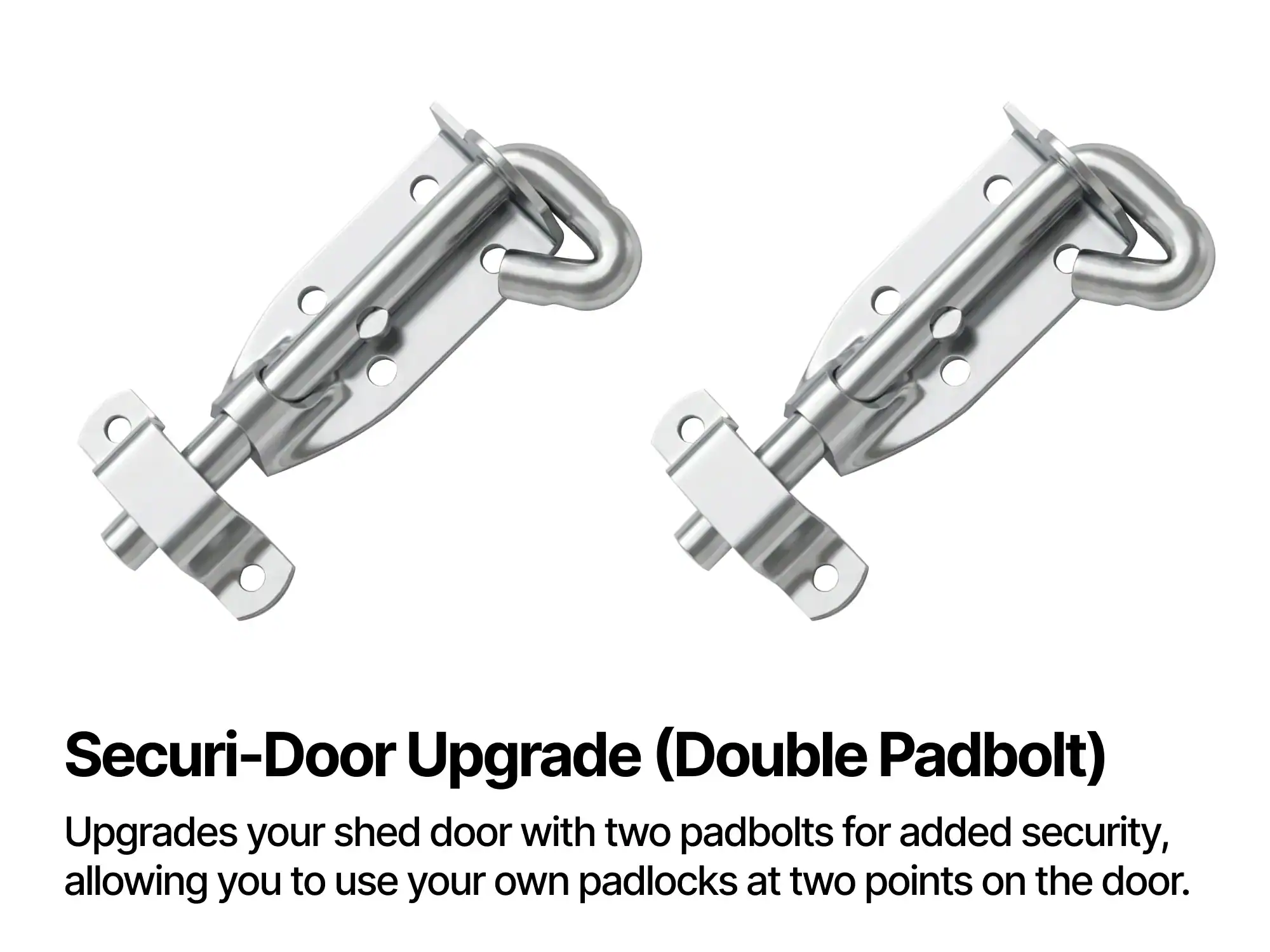

• Securi-Door Double Padbolt Options – Additional padbolts for included or extra doors (single or double) to increase theft deterrence and door security.

Light & Ventilation

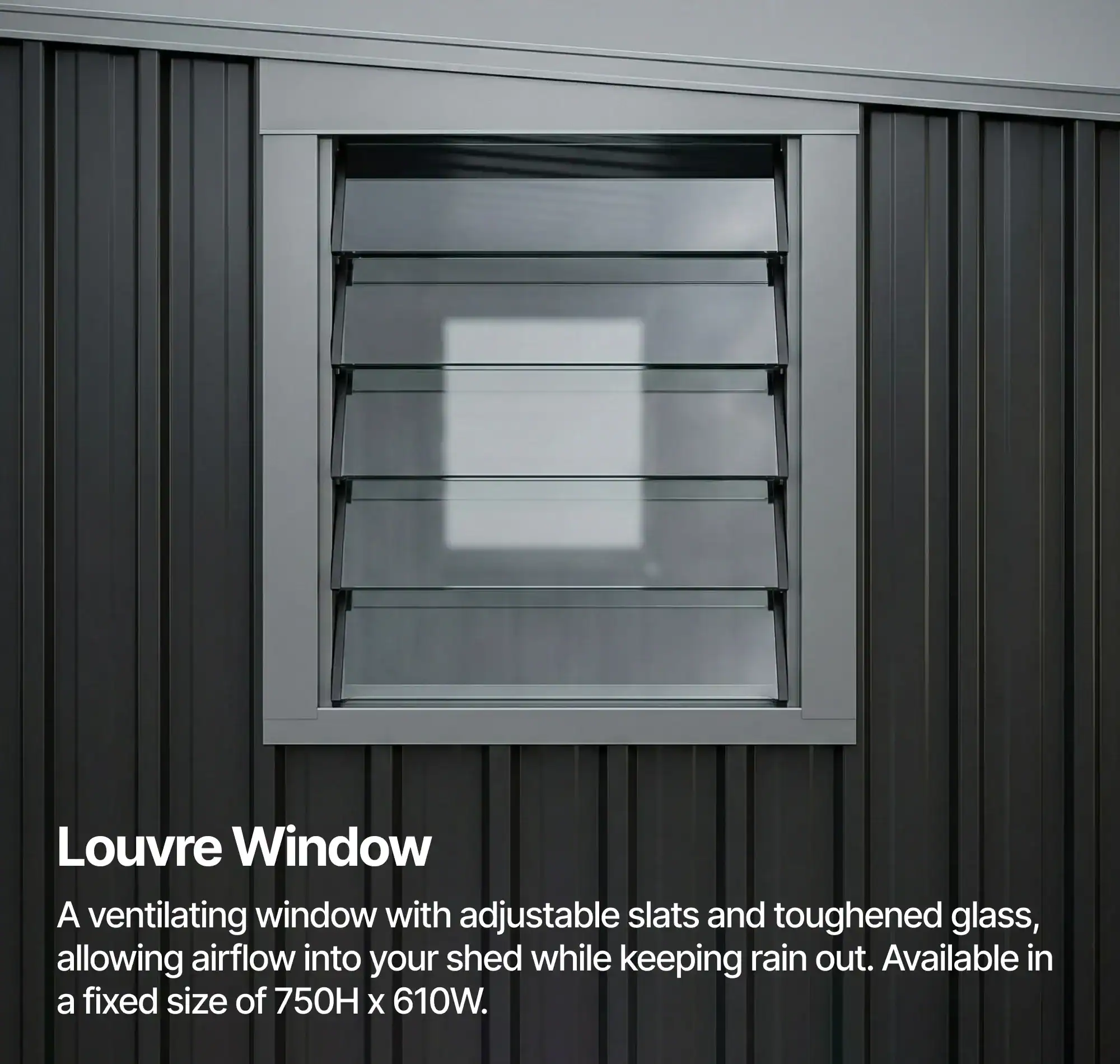

• Louvre Windows – Louvre windows on front, sides, or back walls (with glass included) to bring in natural light and promote airflow.

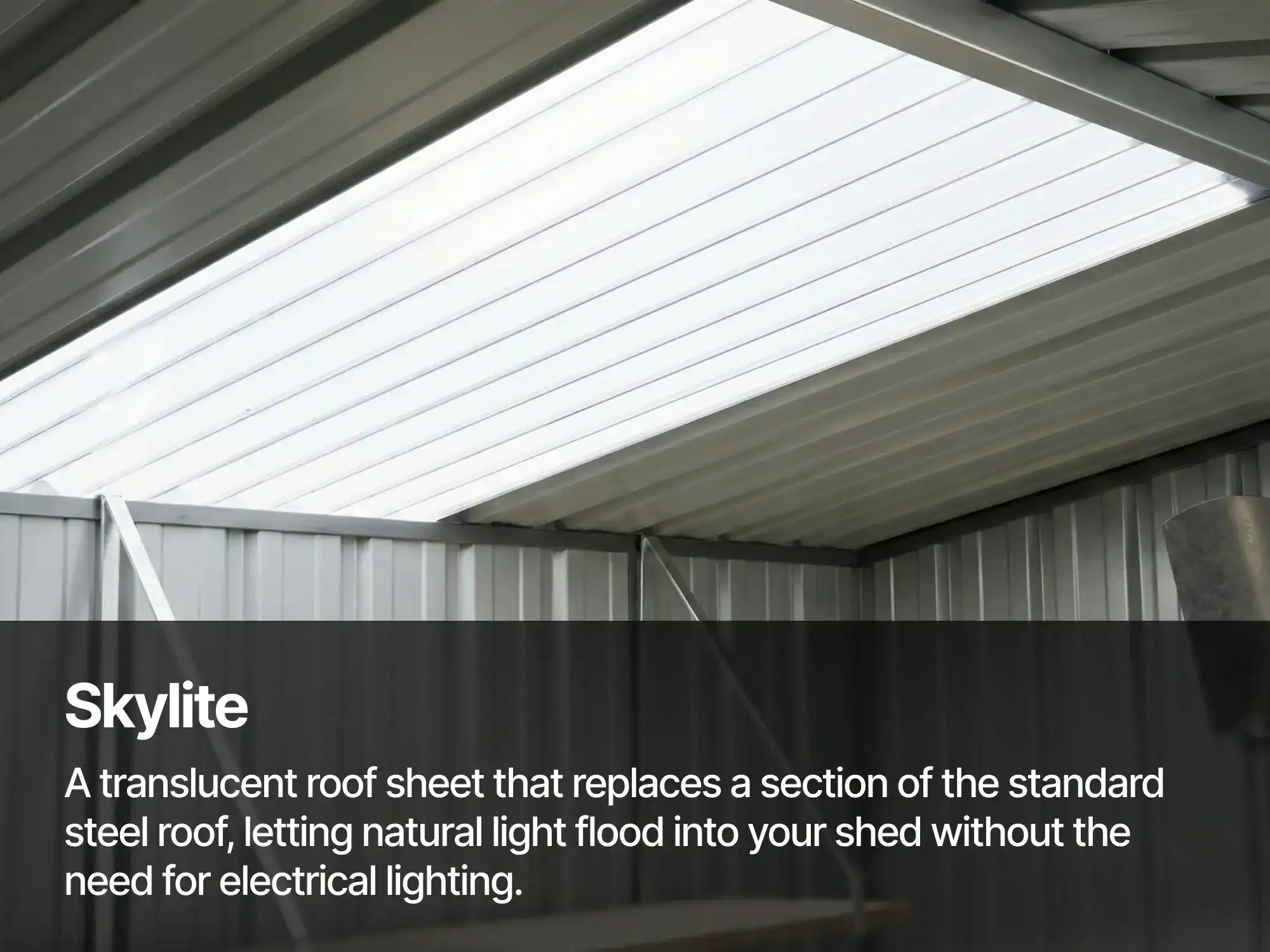

• Skylite Roof Sheet (1 or 2 panels) – Translucent roof panels that introduce overhead natural light when working in the shed.

Height Adjustment

• Extra Wall Height (+150mm or +300mm) – Increase wall height in increments to gain extra standing room or better store long items.

Storage & Organisation

• Bruns Tool Grip – Rail with grippers that fixes to the shed wall to neatly hold tools and other handled items.
• Tool Hooks (set of 4) – Hook sets for hanging tools and equipment off the floor.
• Shelf Brackets – Brackets to support up to three shelves, 300mm deep, keeping storage off the floor and within easy reach (shelves as specified in the options).

Colour Choices

Customise the appearance with Alu-Zinc or a wide palette of colours for walls, roof, trim, and door, allowing you to coordinate the shed with surrounding buildings or landscaping.

These sheds are designed to be DIY projects, however we also offer a full install service at fixed prices should you prefer someone else to do this for you. Typically a shed of this size would take one of the installers we use *one day*. See shed options for pricing.

Construction, DIY & Tools

DIY Difficulty Rating: Straightforward installation for someone with good DIY skills; allow around a day and a half for a competent DIYer. A second person will make handling wall and roof panels easier.

Assembly Overview

• Wall sheets are joined with rivets into top and bottom channels, which are drilled and riveted together.
• When all wall and roof panels are assembled, stand the wall panels up, then drill and rivet them together.
• Fit the roof panels in the same manner, then drill and rivet the flashings to the shed.
• Attach the door using the supplied hinges once the shell and flashings are in place.
• If using the optional floor kit, assemble the precut runners and floorboards first, nailing them together before starting on the shed structure.

Tools Required

• Power drill
• 3.3mm drill bits
• Riveter
• Hammer (for floor kit)
• Tape measure
• Ladder or saw stool
• Non-slip gloves
• Eye protection
• Saw horses

Installation Instructions

For detailed step-by-step guidance, refer to the latest Garden Master GM2323 assembly instructions here:
View the latest GM2323 assembly manual
