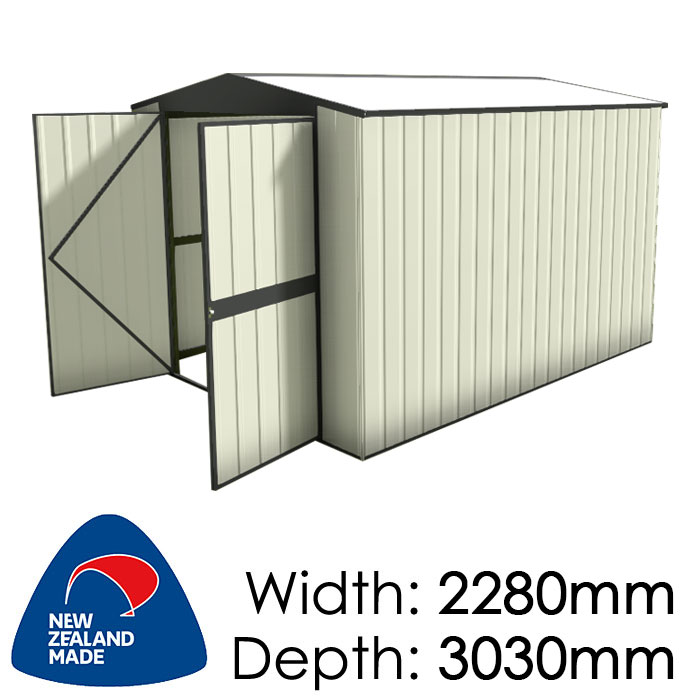

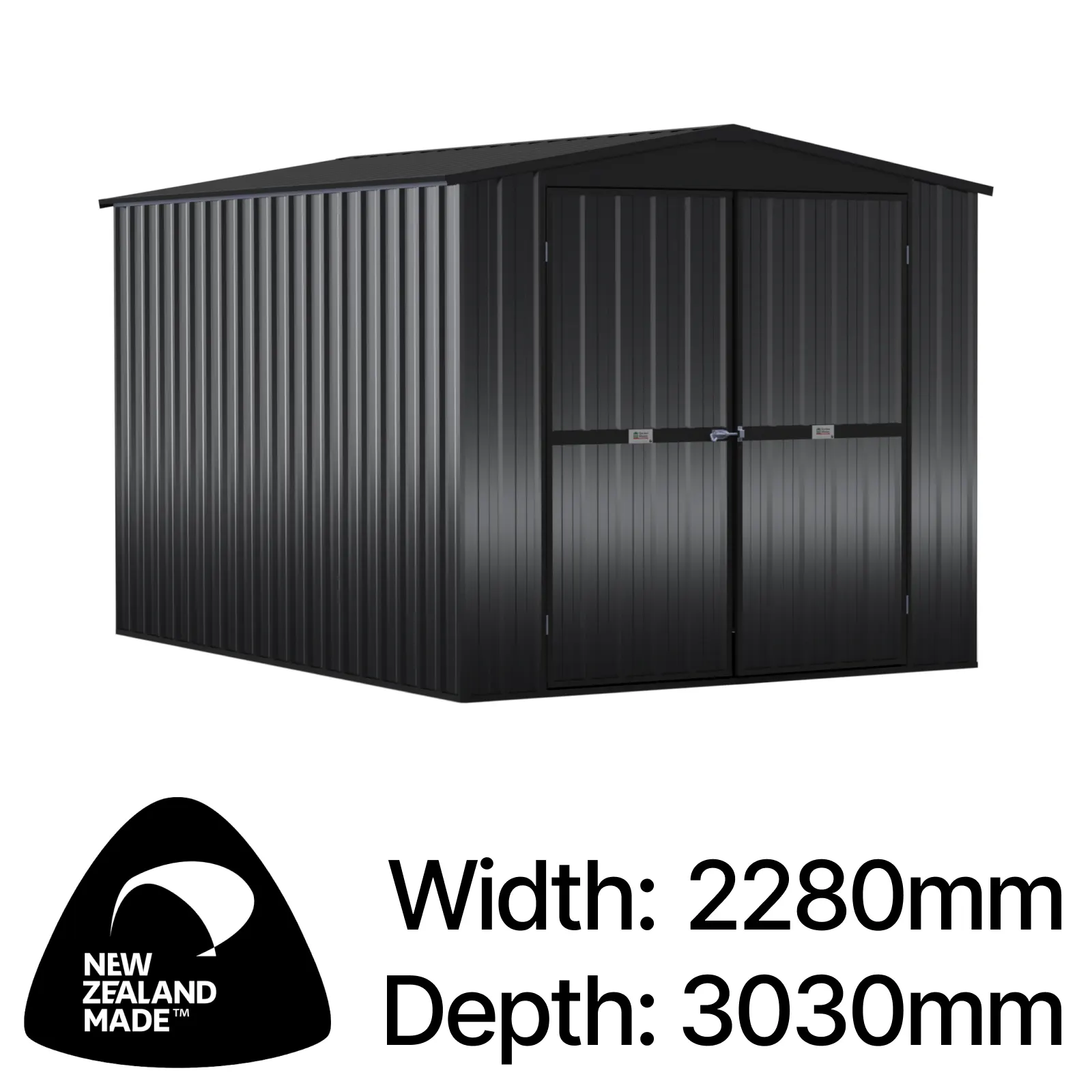

Garden Master GM3023EE Frame Master Garden Shed

Customisation & Configuration

The Garden Master GM3023EE Frame Master Garden Shed is designed to be highly configurable so you can tailor it to your site and how you plan to use it.

• Colour Customisation: Choose Alu-Zinc or select from an extensive range of wall, roof, trim, and door colours to coordinate with your home and existing structures.
• Adjustable Wall Height: Optional extra wall height (+150 mm or +300 mm) allows you to create more headroom or vertical storage to suit your needs.
• Door Options: Configure standard doors or upgrade to double doors or a double padbolt Securi-Door for wider access and enhanced security.
• Flexible Door & Window Placement: Door and window positions are easy to configure, allowing you to place access and light where they work best on your site.
• Lighting & Ventilation: Add fixed or louvre windows and skylite roof sheets to increase natural light and airflow inside the shed.
• Finishing Touches: Corner flashing upgrades, cabin hooks, and locking T-handles allow you to refine both the appearance and everyday usability.

Optional Accessories & Upgrades

Enhance the functionality, comfort, and security of your Garden Master GM3023EE Frame Master Garden Shed with the following factory options:

• Wall Colour Options: Choose from multiple colours (Desert Sand, Grey Friars, Gull Grey, Iron Sand, Karaka, Sandstone, Smooth Cream, Ebony, Slate Grey, Titania) to match your home and landscape.
• Roof Colour Options: Coordinate or contrast your roof with the same wide colour palette for a cohesive look.
• Trim Colour Options: Select trim colours to highlight the shed’s lines and improve street appeal.
• Door Colour Options: Customise the door colour independently for a more tailored appearance.
• Corner Flashing Upgrade: Corner flashing upgrade for added edge protection and a cleaner finished look.
• Wooden Floor Kitset: Optional wooden floor kit with precut runners and floorboards that can be nailed together, providing an internal floor surface where a slab or deck is not used.
• Concrete Floor Bolt Package: Bolt packages for flat or recessed concrete floors to securely fix the shed to your slab.
• Peg Down Kit: Peg down kit (set of 12) for securing the shed to suitable ground where a concrete slab is not used.
• Fixed Windows: Add 1–4 fixed windows to introduce natural light and visibility inside the shed.
• Louvre Windows: Add 1–4 louvre windows to improve ventilation while helping to keep rain out.
• Cabin Hooks: 1–2 cabin hooks to hold doors open securely during use or in breezy conditions.
• Lock T-Handle: Lockable T-handle option to improve security and day-to-day ease of use.
• Securi-Door (Double Padbolt Door): Double padbolt door option that provides a robust, padlock-ready entry for added security.
• Skylite Roof Sheets: Add 1–2 skylite roof sheets to bring extra daylight into the shed without adding more windows.
• Extra Wall Height: Increase wall height by +150 mm or +300 mm to gain additional vertical storage space and headroom.

These sheds are designed to be DIY projects, however we also offer a full install service at fixed prices should you prefer someone else to do this for you. Typically a shed of this size would take one of the installers we use *one day*. See shed options for pricing.

DIY Build & Installation

Straightforward installation for someone with good DIY skills. Wall sheets are joined with rivets, with top and bottom channels drilled and riveted. Once all walls and roof panels are assembled, stand the wall panels up, drill and rivet them together, then install the roof panels in the same manner. Flashings are drilled and riveted to the shed, and the door is attached last using the supplied hinges.

The optional floor kit comes with precut runners and floorboards and can be nailed together with a hammer. If using a kitset floor, it should be assembled before you begin building the shed itself. Allow approximately a day and a half for installation for a competent DIYer. This is generally a two-person job due to the size of the panels.

DIY Difficulty Rating

• Intermediate DIY project, best suited to someone with good DIY skills
• Recommended as a 2-person build due to panel size and handling
• Estimated build time: around 1.5 days for a competent DIYer

Tools Required

• Power drill
• 3.3 mm drill bits
• Riveter
• Hammer (for floor kit)
• Tape measure
• Ladder or saw stool
• Non-slip gloves
• Eye protection
• Saw horses

Assembly Instructions

Refer to the latest installation guides for detailed step-by-step instructions:

• Installation Guide 1
• Installation Guide 2
