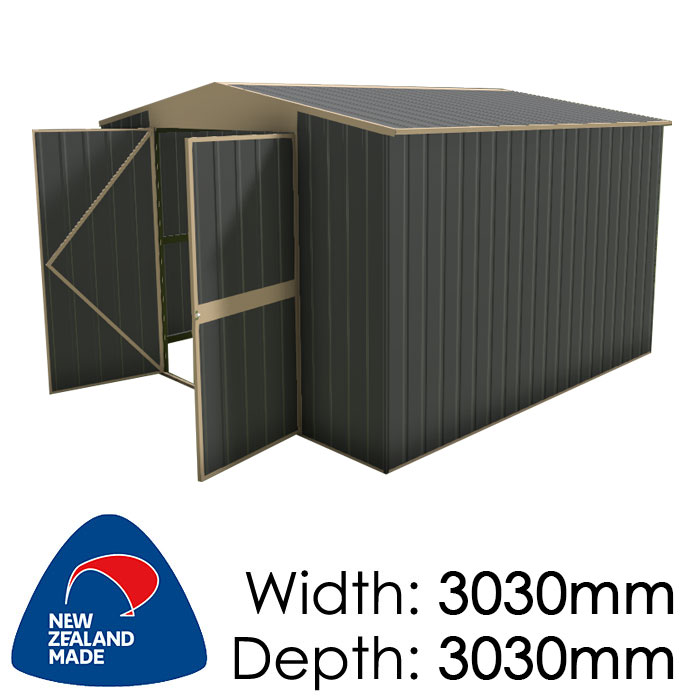

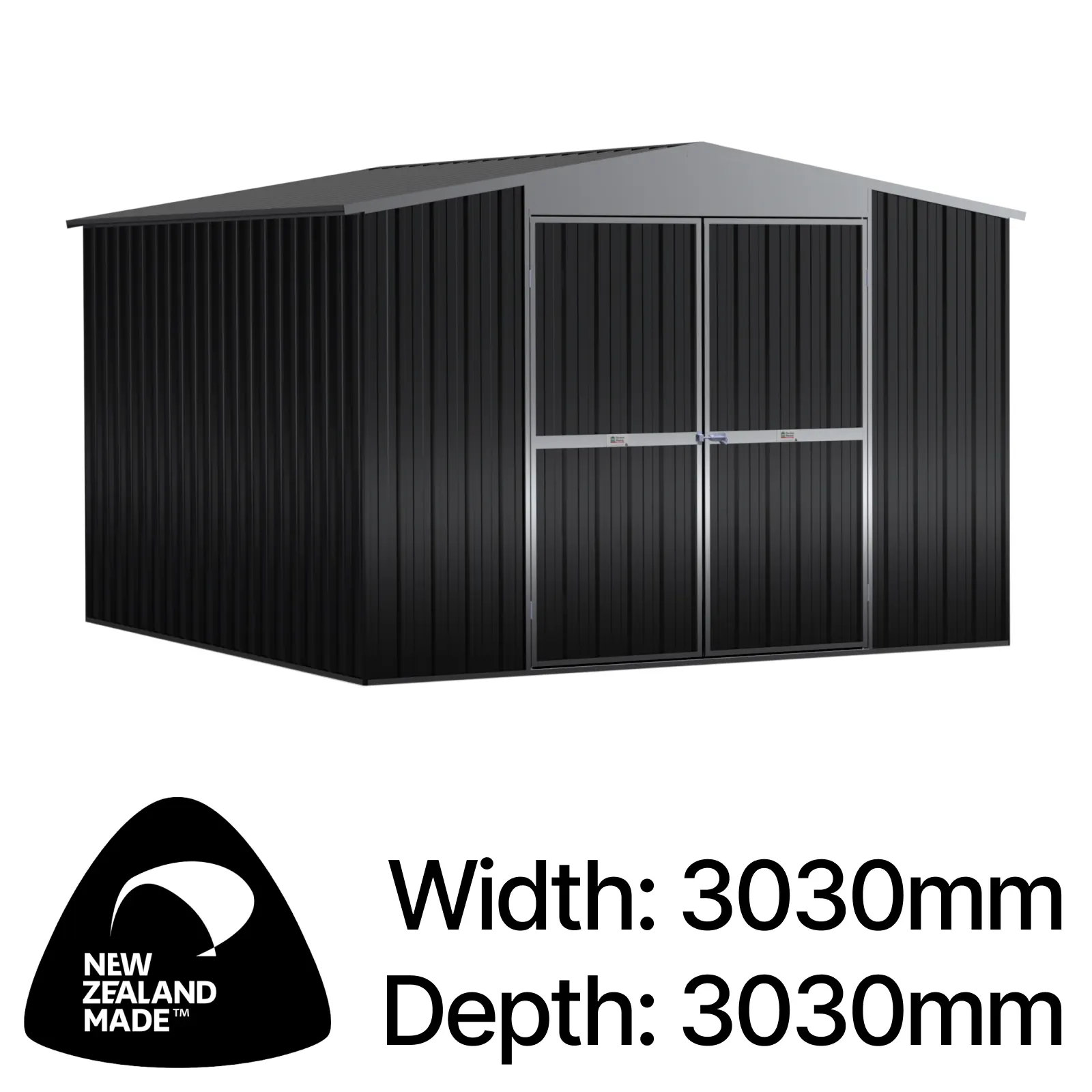

Garden Master GM3030EE Frame Master Garden Shed

Customisation & Configuration Options

The Garden Master GM3030EE Frame Master Garden Shed is highly configurable, allowing you to set it up to suit your property and how you like to work.

• Extensive colour choices – Select from multiple colours for the walls, roof, trim, and doors, enabling you to coordinate the shed with your home, fencing, or other outdoor structures.
• Alu-Zinc or coloured finish – Choose a straightforward Alu-Zinc finish or upgrade to a coloured shed for a more tailored look.
• Flexible windows and roof lighting – Add fixed or louvre windows in the number that suits you, and include skylite roof sheets to bring in additional natural light.
• Adjustable wall height – Increase wall height by +150mm or +300mm to create extra headroom or allow for taller storage.
• Easy-to-configure door and window positions – Door and window locations can be set up to best suit your site layout, sun angles, and access requirements.

Together, these options make it straightforward to configure a shed that fits your available space, your preferred access points, and the way you plan to store and use your gear.

Optional Accessories & Upgrades

Tailor the Garden Master GM3030EE Frame Master Garden Shed to your storage needs and site conditions with a wide range of factory options and accessories.

• Corner Flashing Upgrade – Adds corner protectors for a neater finish and additional protection at exposed shed corners.
• Wooden Floor Kitset – Precut runners and floorboards that can be nailed together to create a dedicated timber floor inside the shed.
• Concrete Floor Bolt Package – Bolt sets for securing the shed to a concrete slab, available for flat or recessed floors for a stable, anchored installation.
• Peg Down Kit – Peg set for fixing the shed to suitable ground, helping to keep the structure firmly in place.
• Fixed Windows (1–4) – Allow natural light into the shed while keeping the structure secure.
• Louvre Windows (1–4) – Provide controllable ventilation to help reduce condensation and keep the interior fresher.
• Cabin Hooks (1–2) – Hold doors open securely, making loading and unloading easier on breezy days.
• Lock T-Handle – Upgraded locking handle option for improved day-to-day usability and security.
• Securi-Door (Double Padbolt Door) – Door option providing a double padbolt arrangement for enhanced locking flexibility.
• Skylite Roof Sheets (1–2) – Clear roof sheets that introduce overhead natural light without compromising wall space.
• Extra Wall Height (+150mm or +300mm) – Increases internal wall height for improved headroom and vertical storage capacity.

These sheds are designed to be DIY projects, however we also offer a full install service at fixed prices should you prefer someone else to do this for you. Typically a shed of this size would take one of the installers we use *one day*. See shed options for pricing.

DIY Build & Installation

This shed is intended for competent DIYers and involves joining pre-formed steel and aluminium components with drilling and riveting.

• DIY difficulty rating: Straightforward installation for someone with good DIY skills; allow around two days for a competent DIYer.
• Construction method: Wall sheets are joined with rivets to top and bottom channels, which are drilled and riveted. Once wall and roof panels are assembled, the wall panels are stood up, drilled, and riveted together. Roof panels are fixed in the same manner, and flashings are drilled and riveted to finish. Doors are attached last using the supplied hinges.
• Floor kit installation: The optional wooden floor kit arrives as precut runners and floorboards that can be nailed together with a hammer. If you are using the kitset floor, assemble it before starting the shed build.

Tools Required

• Power drill
• 3.3mm drill bits
• Riveter
• Hammer (for floor kit)
• Tape measure
• Ladder or saw stool
• Non-slip gloves
• Eye protection
• Saw horses

Assembly Instructions

Refer to the latest Garden Master installation guides for full step-by-step instructions:

• Installation Instructions – Version 1
• Installation Instructions – Version 2
