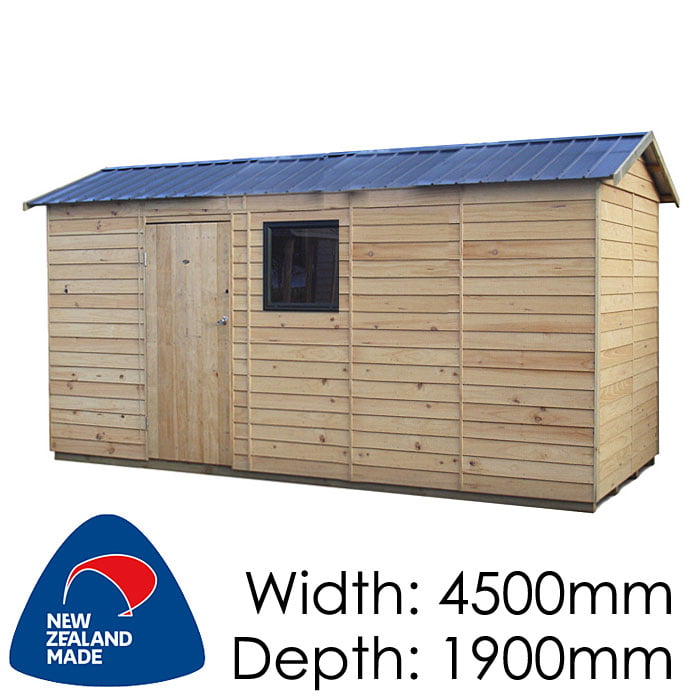

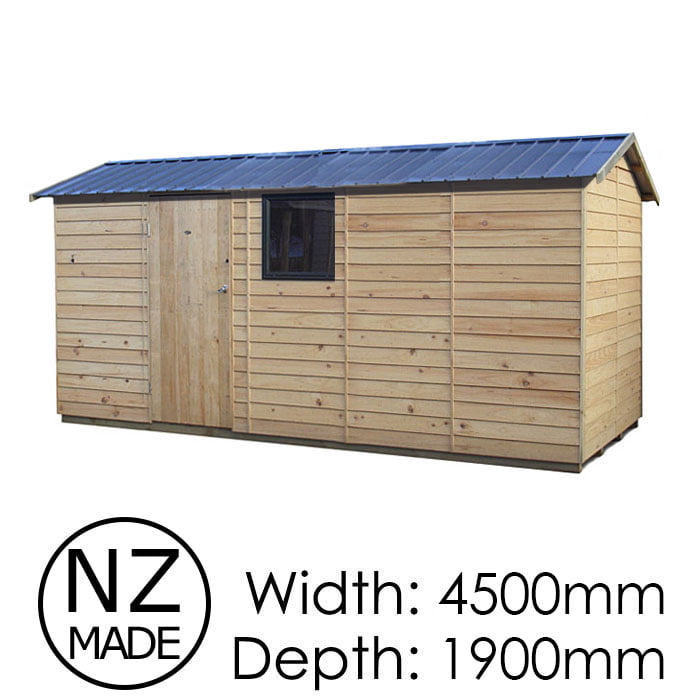

Pinehaven Haast Timber Garden Shed

Customisation & Layout Flexibility

The Pinehaven Haast Timber Garden Shed is built around a modular panel system, giving you flexibility to configure the shed to suit your site and how you plan to use it.

• Door Positioning – The door comes standard on the 4.5m side, but it can be moved to better suit your access path, driveway, or garden layout.
• Window Configuration – Start with the included fixed aluminum window, then add extra fixed or opening windows and choose where they go to capture natural light and ventilation where you need it most.
• Wall Height Options – Increase wall height by 180mm if you need more headroom, taller door clearance, or extra vertical storage space.
• Verandah & Decking Options – Add a gable end verandah or gable end decking to create covered or semi-covered space for items you want to keep out of the weather but still close at hand.
• Finish & Colour – The treated pine weatherboards are supplied unpainted, so you can paint or stain the shed in colours that complement your home or garden while protecting the timber and maintaining the warranty.
• Interior Fit-Out – The internal timber frame makes it simple to fit shelves, hooks, or power points, making the shed suitable as a workshop, storage hub, or compact studio.

Optional Accessories & Upgrades

• Wooden Floor Kitset – Add a strong timber floor for a complete, ready-to-use interior surface if you are not using a concrete slab.
• Roof Colour Options – Standard Karaka roof with the option to change to a wide range of colours (e.g., Sandstone Grey, Titania, New Denim Blue, Iron Sand, Gull Grey, Ebony, Grey Friars, Flax Pod, Slate, Thunder Grey, Windsor Grey) to match your home or surroundings.
• Main Door Upgrade – Upgrade from the standard single door to a double door for easier access with larger items and better usability for workshop or storage layouts.
• Window Upgrades
  • Upgrade the included fixed window to an opening window for added ventilation.
  • Add extra fixed windows (1, 2, or 3) to increase natural light.
  • Add extra opening windows (1, 2, or 3) for greater airflow and comfort when working inside.
• Fire-Retardant Building Paper (Walls) – Option to have the wall cladding lined with fire-retardant building paper for an additional layer of protection.
• Wall Height Increase – Increase wall height by 180mm to improve headroom and make it easier to store taller items or accommodate taller users.
• Timber Shelving (1000mm x 300mm including brackets) – Available in sets of 1 to 4 to organise tools, gardening supplies, and smaller items off the floor.
• Gable End Decking Kit – Add a deck at the gable end to create a useful transition space, ideal for muddy boots, potting, or temporarily storing items outdoors.
• Gable End Verandah Kit – Create a covered area at the gable end, perfect for storing firewood or keeping items out of the rain while still easily accessible.
• Optional Clear Light Panels – Add clear light roofing sections (where available) to bring more natural light into the shed without additional windows.

These sheds are designed to be DIY projects, however we also offer a full install service at fixed prices should you prefer someone else to do this for you. Typically a shed of this size would take one of the installers we use one day. See shed options for pricing.

DIY Build & Tools

• DIY Difficulty Rating: Not specified – assembly is described as easy due to the modular panel design and supplied hardware.

Recommended Tools

• Power drill
• Drill bits 3.2mm
• 3/8 hex drive
• Riveter
• Hammer
• Nail punch
• Tape measure
• Ladder or saw stool
• Level
• Caulking gun
• String line or length of string
• Masonry drill and 10mm masonry bit (for bolt-down kit or concrete fixing only)

Assembly Instructions: For the latest construction and installation guide for the Pinehaven Haast Timber Garden Shed, please refer to the following link:
View the latest Pinehaven Haast assembly instructions
