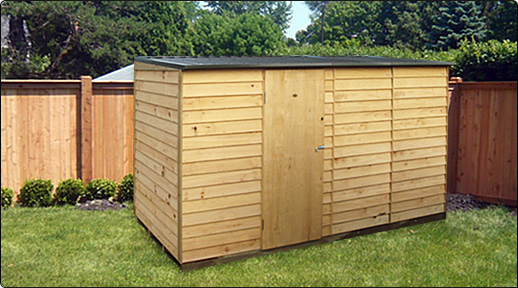

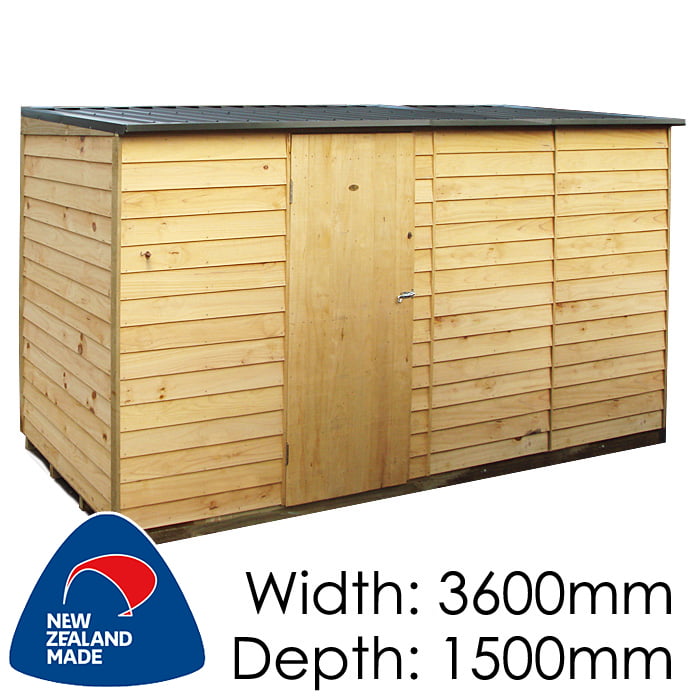

Pinehaven Lyell Timber Garden Shed

Customisation & Layout Flexibility

The Pinehaven Lyell Timber Garden Shed offers several ways to tailor the building to your site and storage needs, making it well suited to tight or awkward spaces.

• Door Positioning: The main door can be moved during manufacture to the end wall or any other panel, allowing you to choose the most convenient access point along the long side or at the end.
• Roof Colour Choices: Select from a standard Karaka roof or upgrade to a variety of alternative colours to better match your home or existing structures.
• Window Options: Fixed and opening aluminium windows are available in multiple quantities, so you can increase natural light and airflow where you need it most.
• Internal Fit-Out: Optional timber shelving kits let you create dedicated storage zones for small tools, sprays, and accessories, helping to keep the floor area clear.
• Finish & Protection: Supplied without paint or stain so you can choose the exterior colour and finish that best suits your property while ensuring the timber is protected and the warranty maintained.

Optional Accessories & Upgrades

• Wooden Floor Kitset: Adds a dedicated timber floor to your shed for cleaner, more comfortable storage and a defined, level surface for your items.
• Roof Colour Options: Standard Karaka roof colour, or upgrade to a wide range of alternative colours (such as Sandstone Grey, Titania, New Denim Blue, Iron Sand, Gull Grey, Ebony, Grey Friars, Flax Pod, Slate, Thunder Grey, and Windsor Grey) to coordinate with your home and surroundings.
• Main Door Upgrade: Choose between the standard single door or upgrade to double doors for wider access and easier movement of larger items.
• Aluminium Fixed Windows (1–3): Add one or more fixed aluminium windows to bring natural light into the shed while keeping contents protected from the weather.
• Aluminium Opening Windows (1–3): Add one or more opening aluminium windows to improve ventilation and help reduce condensation inside the shed.
• Fire Retardant Building Paper (Wall Clad): Optional wall cladding with fire retardant building paper for added protection and peace of mind.
• Timber Shelving (1000mm L x 300mm D, incl. brackets): Available in 1 or 2 sets to create organised storage for tools, paints, and smaller items off the floor.

These sheds are designed to be DIY projects, however we also offer a full install service at fixed prices should you prefer someone else to do this for you. Typically a shed of this size would take one of the installers we use *one day*. See shed options for pricing.

DIY Build & Installation

The Pinehaven Lyell Timber Garden Shed is supplied as a kitset of pre-made panels, and the lean-to roof design contributes to a straightforward assembly process.

• DIY difficulty rating: Suitable for a capable DIYer; assembly is made easier by the modular pre-made panel construction. A second person is recommended for handling panels and roof sections.

Tools Required

• Power drill
• Drill bits 3.2mm
• Hex drive 3/8
• Riveter
• Hammer
• Nail punch
• Tape measure
• Ladder or saw stool
• Level
• Caulking gun
• String line / length of string
• Masonry drill and 10mm masonry bit (for bolt down kit only)

Assembly Instructions: For the latest construction and installation guide, please refer to the manual here: Pinehaven Lyell Timber Garden Shed Instructions.
