SHED DISPLAY YARD

Streamline SC7230 Single Carport – Coloursteel

Name: Streamline SC7230 Single Carport Coloursteel
Brand: Streamline
SKU: SC7230-Coloursteel
Price: 4994.00 NZD
Availability: InStock

FROM

$4,994.00

(incl GST)

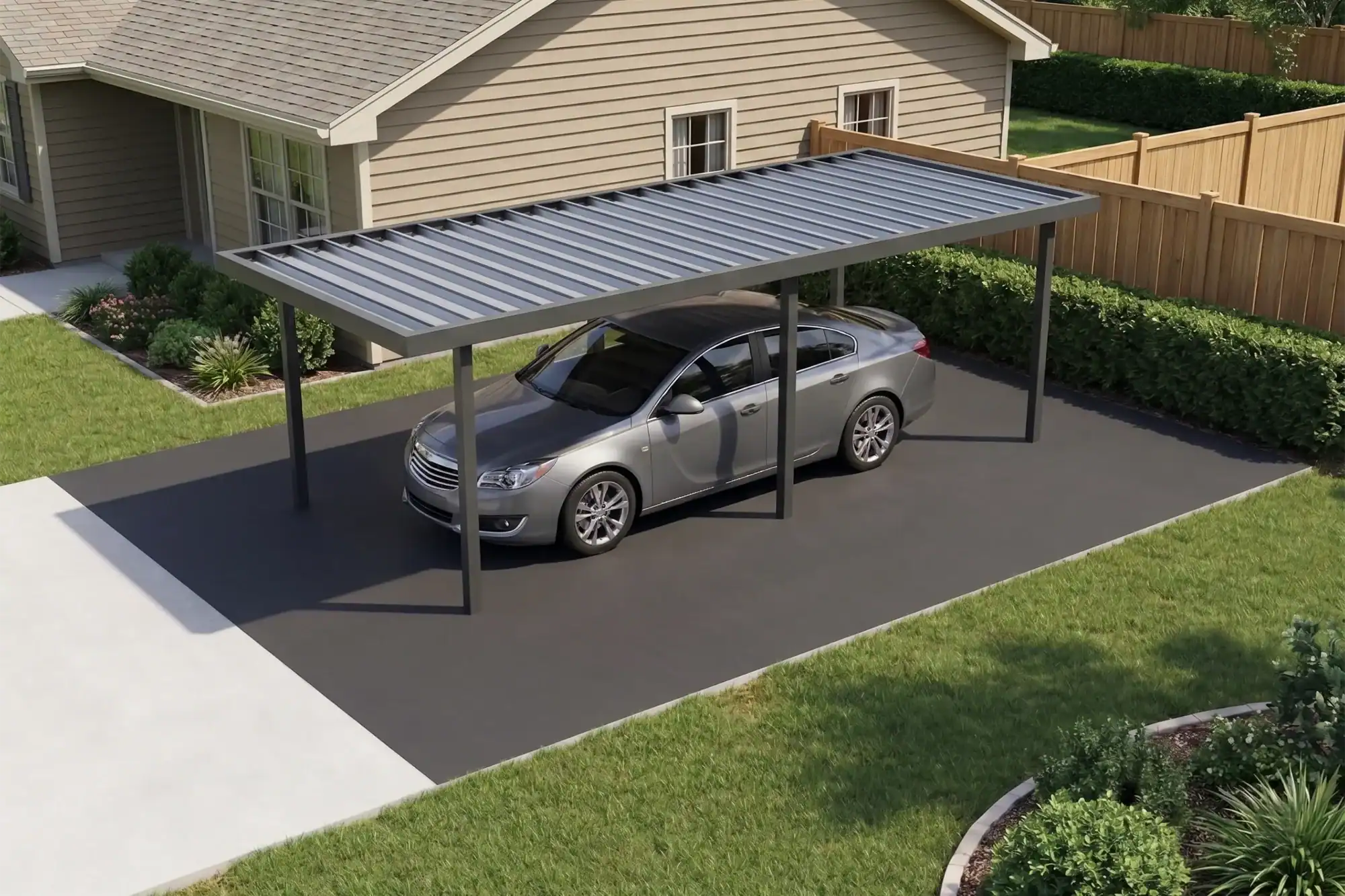

Strong, Low‑Profile Protection for Your Vehicle

The Streamline SC7230 Single Carport offers robust, low‑maintenance shelter for your car, boat, or campervan while complementing modern homes and commercial settings. Made in New Zealand from quality steel, this flat‑roof carport features a streamlined PurlinDek roofing system and modular kitset design for cleaner lines, fewer components, and straightforward installation.

Key Specifications

Model: SC7230
Roof style: Flat
Area: 14.1 m²
Base size: Width 2640 mm, Depth 5350 mm

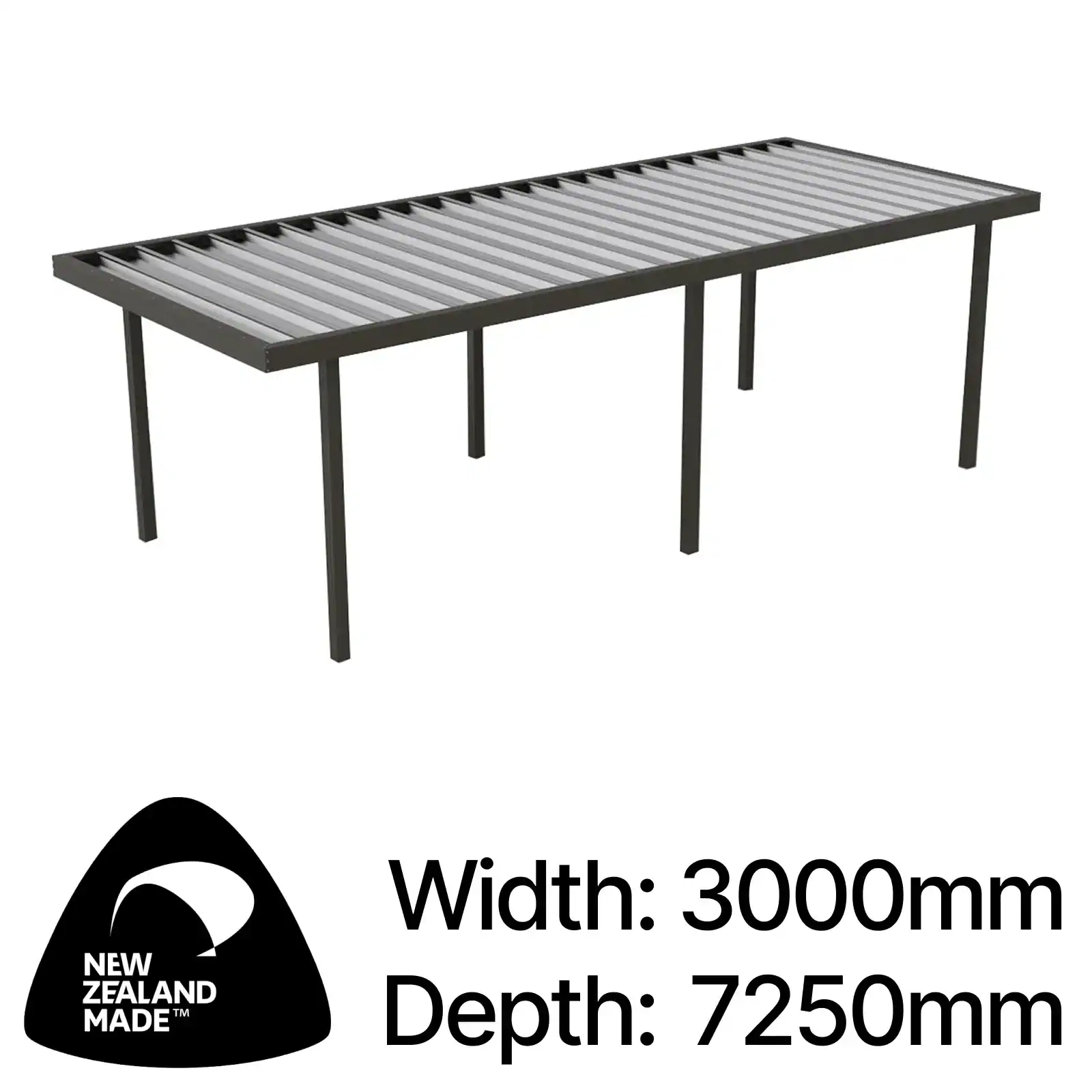

Roof size: Width 3000 mm, Depth 7250 mm
Clear entry height: 2100 mm
Posts specification: 100 x 100 mm square fluted, 0.75 g steel
Fascia/gutter: 155 mm fascia/gutter on all sides
Kitset pack size (approx.): 7.2 m (L) x 0.7 m (W) x 0.3 m (H), ~210 kg
Fixing options: Can be fixed to existing driveways using top surface galvanised base plates (where concrete meets requirements)

SKU: SC7230-Coloursteel Categories: Full shed range, Sloping Roof Sheds Tags: 10m² to 30m² Sheds, Large Sheds (3m to 4m wide) Brand: Streamline Carports

"*" indicates required fields

Streamline SC7230 Single Carport - Coloursteel

Product Name

+ Additions of

Step 1 - Colour ↓

Would you like a coloured carport?

Posts

Fascia and Gutters

Roof

Step 2 - Install & Height ↓

How will your carport be installed?

Minimum thickness of 100mm, minimum 20MPa concrete with steel reinforcing mesh, and the slab shall extend a minimum of 500mm in each direction.

For surface mount concrete installation, posts are supplied at 2.1m in length. Longer posts are available for higher clearance if required.

For in-ground soil installation, posts are supplied at 3m in length, allowing approximately 900mm in-ground and a 2.1m clearance height. Longer posts are available for higher clearance if required.

Would you like your carport higher?

Step 3 - Extras ↓

Carport Accessories

Step 4 - Shipping ↓

Collect from your local Mainfreight Depot

Shipping*

Collect from Manufacturer (Palmerston North)

Collect from Gubba (Auckland) - $ 314.00

Collect from a local Mainfreight Depot

Mainfreight Depot*

Accessories

Titania
Titania
Zinc
Surface Mount Concrete Installation
2.1m Clearance Height
Collect from Manufacturer (Palmerston North)

Order Summary

Base Price $ 4,994.00

Accessory Total

Assembly Total

Total

Understand your customisation options + important considerations when choosing a shed

SHED BUYING GUIDE

PurlinDek® by Streamline is a cold rolled steel sheet with a 6m span, offering safer, faster, and cost-effective construction.

Stylish and affordable, this lightweight profile offers strength and durability without the high cost of heavyweight steel alternatives.

The guttering system creates a strong 'gutter beam' around all sides eliminating the need for unsightly framing.

Streamline products have pared-back engineering with fewer components, making them easier and safer to install.

Available in five popular shades, allowing you to match your carport to your house or outdoor space.

Backed by a 10-year warranty, giving you long-lasting confidence in the quality, durability, and performance for years to come.
