Streamline SC5430 Single Carport – Zinc

Name: Streamline SC5430 Single Carport
Brand: Streamline
SKU: SC5430
Price: 2981 NZD
Availability: InStock

View Options

FROM

Original price was: $2,981.00.Current price is: $2,086.00.

(incl GST)

Strong, Streamlined Shelter for Everyday Protection

The Streamline SC5430 Single Carport is a New Zealand-made steel carport that delivers dependable, everyday weather protection for vehicles while doubling as a sleek, multi-purpose outdoor cover. Its flat-roof design, clean fascia and gutter lines, and modular form create a modern look that suits homes, driveways, and small commercial spaces. With an easy-to-assemble kit built around robust PurlinDek steel roofing and just three key components, it offers a neat, durable solution for long-lasting shelter.

Key Specifications

Model: SC5430
Roof style: Flat
Area: 9.4m²
Base size: Width 2640mm, Depth 3550mm

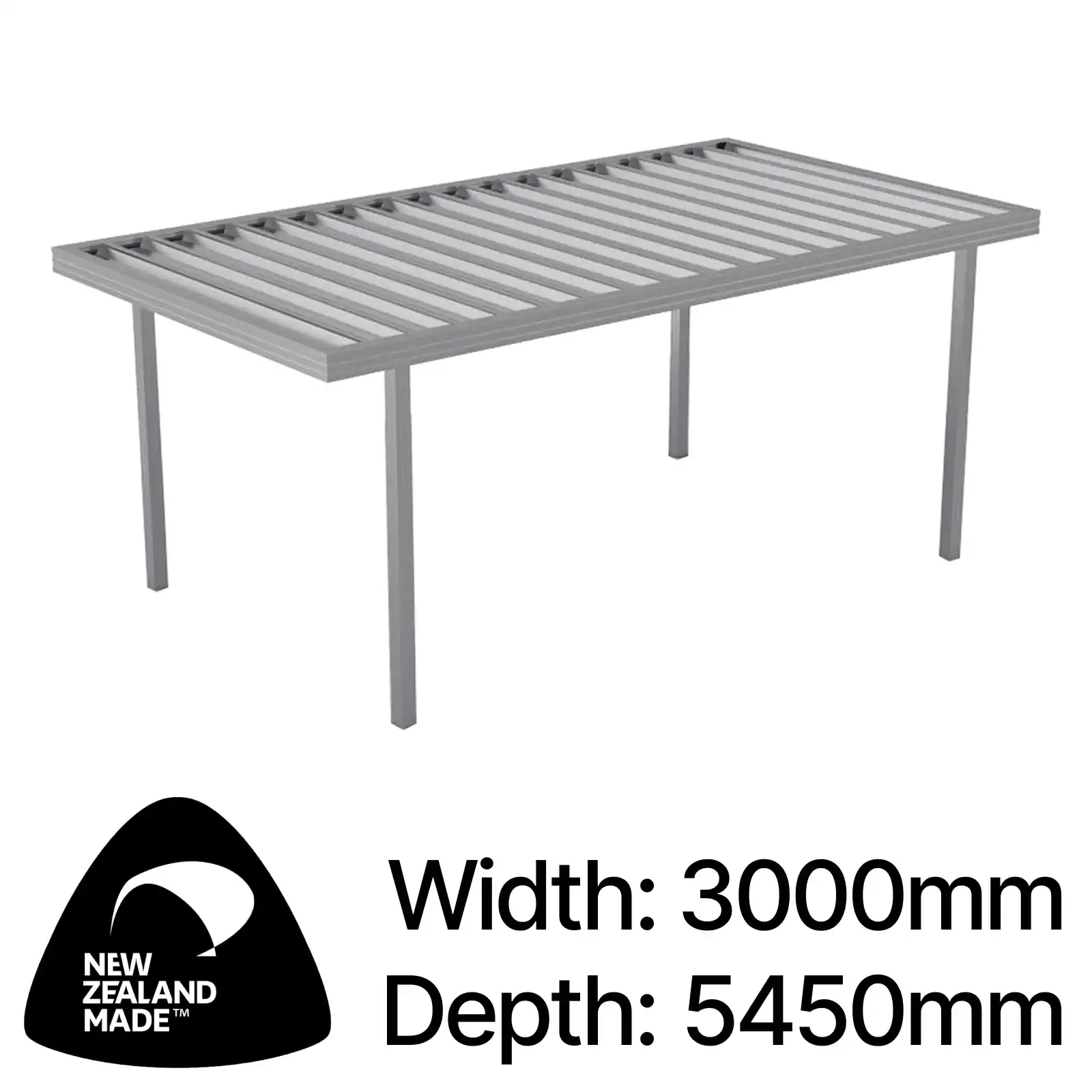

Roof size: Width 3000mm, Depth 5450mm
Clear entry height (standard): 2100mm
Posts: 100 x 100 mm square fluted, 0.75 g steel
Fascia/gutter: 155mm fascia/gutter on all sides
Roofing: PurlinDek steel roofing
Kitset pack size: Approx. 5.5m (L) x 0.7m (W) x 0.3m (H), ~180kg
Mounting options: Can be set in-ground or fixed to existing driveways using Top Surface galvanised base plates (where the concrete meets requirements)

SKU: SC5430-Zinc Category: Full Shed Range Tags: 10m² to 30m² Sheds, Large Sheds (3m to 4m wide) Brand: Streamline

"*" indicates required fields

Streamline SC5430 Single Carport - Zinc

Product Name

+ Additions of

Step 1 - Install & Height ↓

How will your carport be installed?

Minimum thickness of 100mm, minimum 20MPa concrete with steel reinforcing mesh, and the slab shall extend a minimum of 500mm in each direction.

For surface mount concrete installation, posts are supplied at 2.1m in length. Longer posts are available for higher clearance if required.

For in-ground soil installation, posts are supplied at 3m in length, allowing approximately 900mm in-ground and a 2.1m clearance height. Longer posts are available for higher clearance if required.

Would you like your carport higher?

Step 2 - Extras ↓

Carport Accessories

Step 3 - Shipping ↓

Collect from your local Mainfreight Depot

Shipping*

Collect from Manufacturer (Palmerston North)

Collect from Gubba (Auckland) - $ 314.00

Collect from a local Mainfreight Depot

Mainfreight Depot*

Accessories

2.1m Clearance Height
Collect from Manufacturer (Palmerston North)

Order Summary

Base Price $ 2,086.00

Accessory Total

Assembly Total

Total

PurlinDek® by Streamline is a cold rolled steel sheet with a 6m span, offering safer, faster, and cost-effective construction.

Stylish and affordable, this lightweight profile offers strength and durability without the high cost of heavyweight steel alternatives.

The guttering system creates a strong 'gutter beam' around all sides eliminating the need for unsightly framing.

Streamline products have pared-back engineering with fewer components, making them easier and safer to install.

Available in five popular shades, allowing you to match your carport to your house or outdoor space.

Backed by a 10-year warranty, giving you long-lasting confidence in the quality, durability, and performance for years to come.

Customisation Options

The Streamline SC5430 Single Carport is designed to be fully customisable so it can be configured to suit your site, vehicles, and aesthetic preferences.

Size & Proportions – Length, width, and height can be customised, including multiple clearance height options, to better fit your driveway, parking bay, or outdoor space.
Consistent Zinc Finish – Roof, fascia, gutters, and posts are finished in Zinc for a clean, durable, and low-maintenance result.
Post Positions – Post locations are customisable, helping you work around obstacles or optimise access and vehicle manoeuvring.
Light Control – Optional clear roof panels allow you to introduce natural light while maintaining overhead cover.

This flexibility makes it easier to integrate the carport into new housing developments, existing homes, or commercial environments while maintaining a clean, streamlined look.

Optional Accessories & Upgrades

Tailor the Streamline SC5430 Single Carport to your site and preferences with the following options:

Zinc Colour & Finish Options Full Zinc finish across roof, posts, fascia, and gutters for a clean, durable, and low-maintenance result.
Increased Clearance Height Multiple clearance height options from 2.2m up to 3.6m (in defined increments) so you can accommodate taller vehicles or increase headroom where required.
Clear Roof Panels Add 1, 2, or 3 clear roof panels to introduce natural light under the carport while still providing overhead protection.
Concrete Base Plate Set Optional concrete base plates (set of 4) for fixing posts to suitable existing concrete driveways, avoiding the need for in-ground post installation where the slab meets requirements.

These sheds are designed to be DIY projects, however we also offer a full install service at fixed prices should you prefer someone else to do this for you. Typically a shed of this size would take one of the installers we use *one day*. See shed options for pricing.

DIY Construction & Tools

The Streamline SC5430 Single Carport is supplied as a kitset, with a streamlined design built around three main components (roofing iron, fascia/gutter, and posts) to make on-site assembly more straightforward.

DIY difficulty rating: Not specified – treat as a multi-step project that may require more than one person to handle components safely.

Recommended Tools & Equipment

Tape measure
Shovel
Level
String line
Concrete
Timber for bracing
Foot protection
Eye protection
Helmet
Gloves
Hearing protection
Sun protection
Drill rivet gun
Ladder planks
60mm hole drill
Silicone gun
Ladder

Assembly instructions: A link to the latest assembly instructions is not provided in the supplied information.
