Streamline SC5436 Single Carport – Zinc

Name: Streamline SC5436 Single Carport
Brand: Streamline
SKU: SC5436
Price: 3256 NZD
Availability: InStock

View Options

FROM

Original price was: $3,256.00.Current price is: $2,279.00.

(incl GST)

Strong, Stylish Protection for Your Vehicle

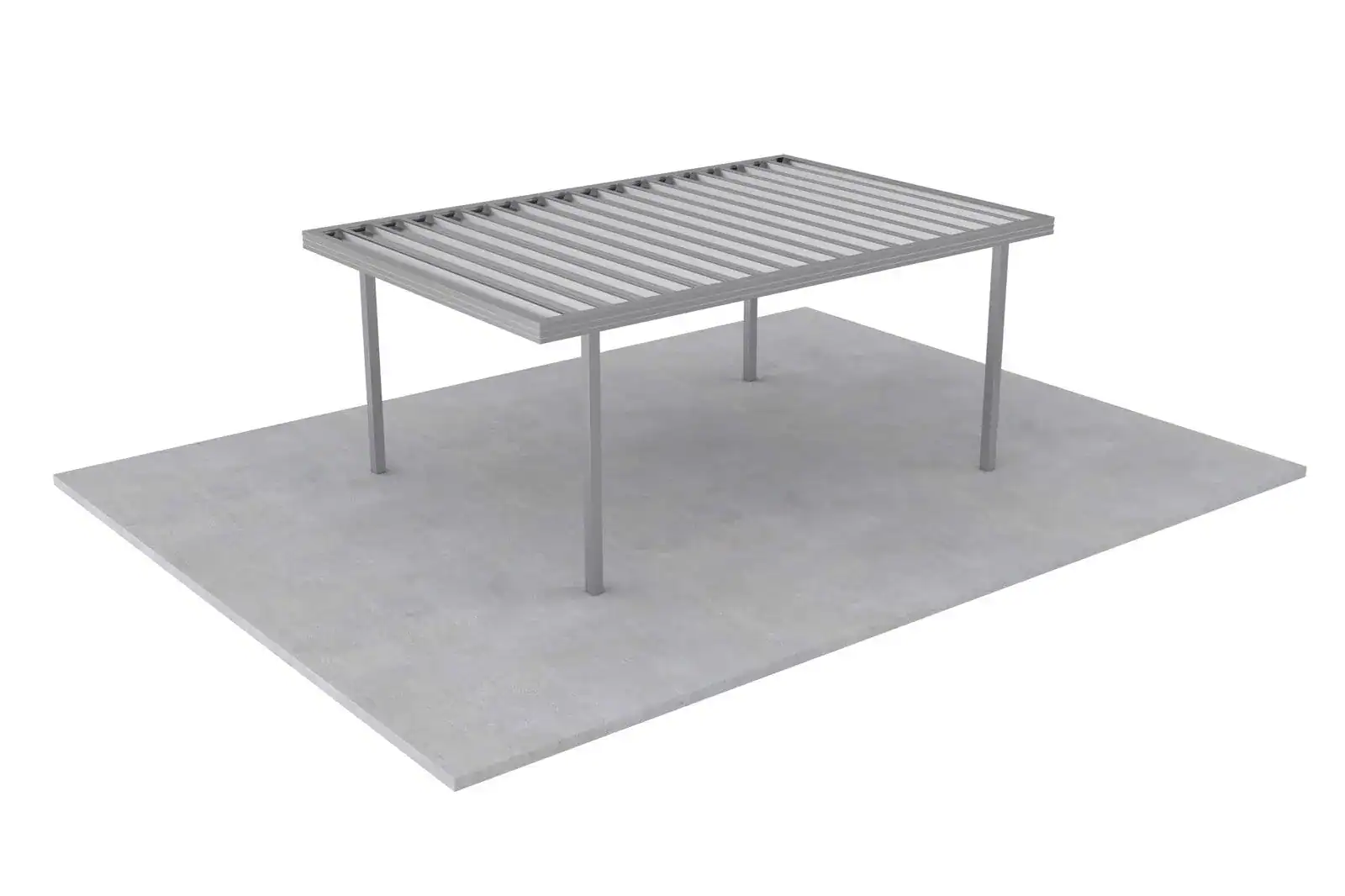

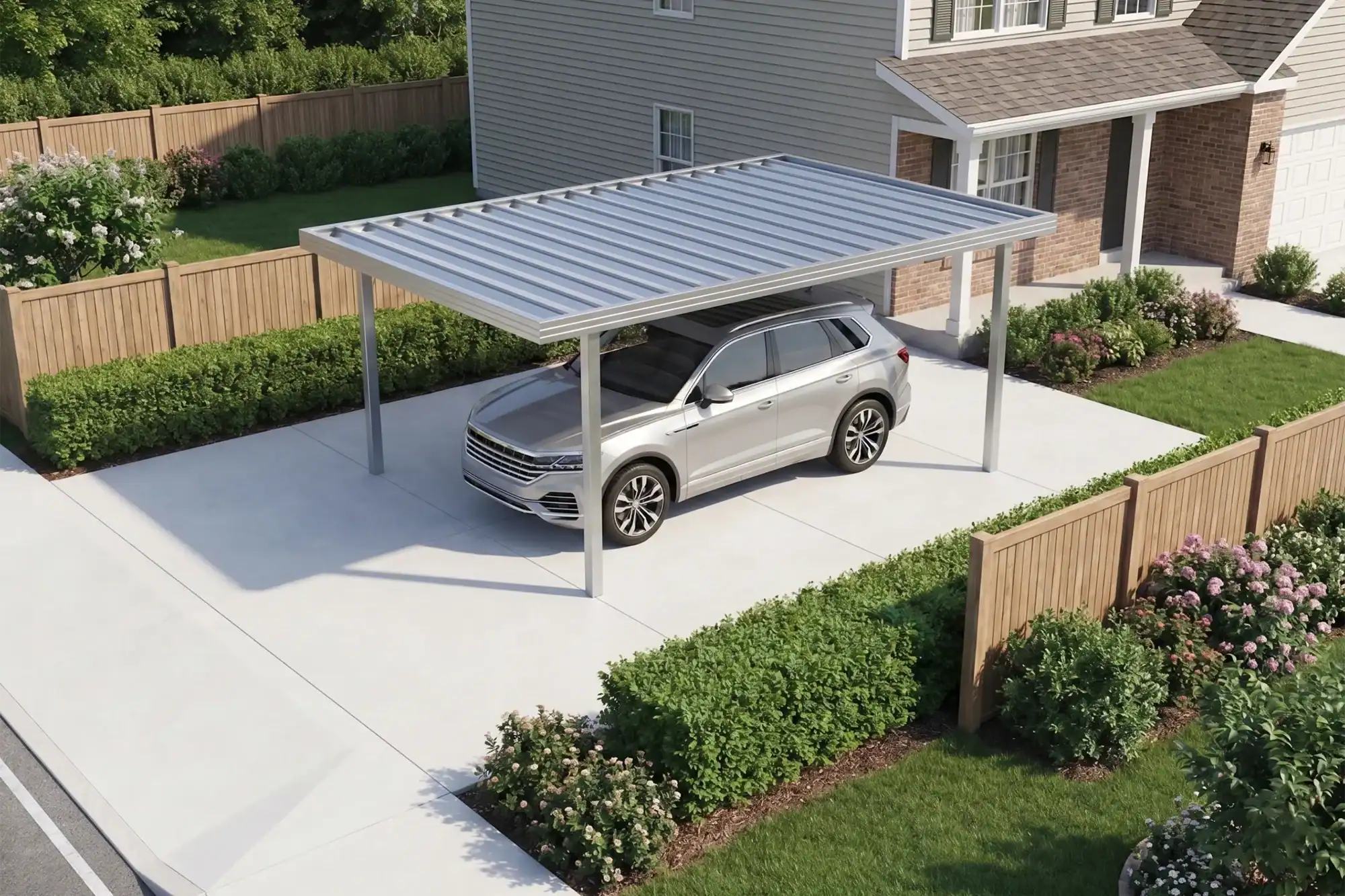

The Streamline SC5436 Single Carport delivers durable, low-maintenance shelter for your car, boat, campervan, or outdoor living area. Its sleek flat-roof, modular steel design offers robust weather protection while complementing modern homes and commercial spaces. Supplied as a simple kitset with just three main components and PS1 engineering certification, this New Zealand-made carport provides reliable, long-term cover with straightforward installation.

Key Specifications

Area: 11.5 m²
Base size: Width 3240 mm, Depth 3550 mm

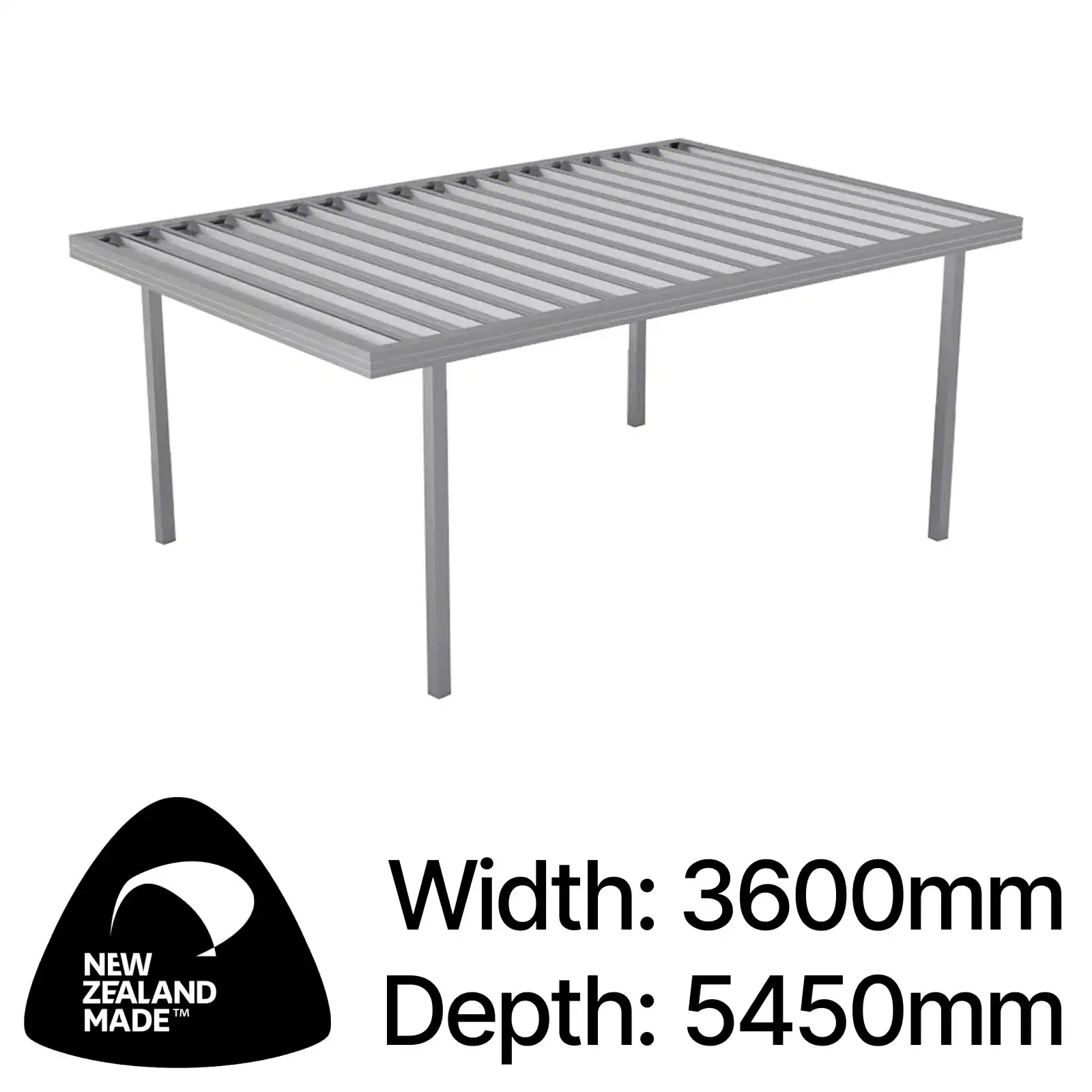

Roof size: Width 3600 mm, Depth 5450 mm
Clear height entry: 2100 mm
Posts: 100 x 100 mm square fluted, 0.75g steel
Fascia/gutter: 155 mm on all sides
Kitset pack size (approx.): 5.5 m (L) x 0.7 m (W) x 0.3 m (H), ~180 kg

SKU: SC5436-Zinc Category: Full Shed Range Tags: 10m² to 30m² Sheds, Large Sheds (3m to 4m wide) Brand: Streamline

"*" indicates required fields

Streamline SC5436 Single Carport - Zinc

Product Name

+ Additions of

Step 1 - Install & Height ↓

How will your carport be installed?

Minimum thickness of 100mm, minimum 20MPa concrete with steel reinforcing mesh, and the slab shall extend a minimum of 500mm in each direction.

For surface mount concrete installation, posts are supplied at 2.1m in length. Longer posts are available for higher clearance if required.

For in-ground soil installation, posts are supplied at 3m in length, allowing approximately 900mm in-ground and a 2.1m clearance height. Longer posts are available for higher clearance if required.

Would you like your carport higher?

Step 2 - Extras ↓

Carport Accessories

Step 3 - Shipping ↓

Collect from your local Mainfreight Depot

Shipping*

Collect from Manufacturer (Palmerston North)

Collect from Gubba (Auckland) - $ 314.00

Collect from a local Mainfreight Depot

Mainfreight Depot*

Accessories

2.1m Clearance Height
Collect from Manufacturer (Palmerston North)

Order Summary

Base Price $ 2,279.00

Accessory Total

Assembly Total

Total

PurlinDek® by Streamline is a cold rolled steel sheet with a 6m span, offering safer, faster, and cost-effective construction.

Stylish and affordable, this lightweight profile offers strength and durability without the high cost of heavyweight steel alternatives.

The guttering system creates a strong 'gutter beam' around all sides eliminating the need for unsightly framing.

Streamline products have pared-back engineering with fewer components, making them easier and safer to install.

Available in five popular shades, allowing you to match your carport to your house or outdoor space.

Backed by a 10-year warranty, giving you long-lasting confidence in the quality, durability, and performance for years to come.

Customisation & Configuration Options

The Streamline SC5436 Single Carport forms part of the Streamline Customisable Carports range, allowing you to tailor the structure to your site and design preferences.

Fully Customisable Dimensions – Adjust length, width, and height to suit your driveway, parking bay, or outdoor living area.
Flexible Post Positions – Post locations can be configured to work around existing hard landscaping or site constraints.
Height Adjustments – Choose from a wide range of clearance heights from 2.2 m up to 3.6 m (via Increase Height options), ideal for taller vehicles such as vans or campervans.
Consistent Zinc Finish – Roof, fascia, gutters, and posts are finished in Zinc for a clean, durable, and low-maintenance result.
Light Control – Optional clear roof panels let you introduce additional daylight where needed, especially useful over outdoor living or walkway areas.

This flexibility makes it easy to integrate the carport into your existing layout, whether you are covering a single park, extending a verandah, or creating a sheltered walkway.

Optional Extras & Add-Ons

Enhance the functionality and finish of your Streamline SC5436 Single Carport with the following options:

Zinc Finish Options – Full Zinc finish across roof, posts, fascia, and gutters for a clean, durable, and low-maintenance result.
Clear Roof Panels – Add 1x or 2x clear roof panels to introduce natural light under the carport, ideal where you want a brighter, more open-feeling space.
Concrete Base Plate Set (x4) – Top surface galvanised base plates for fixing posts to existing concrete driveways, where the concrete meets the required standards.

These sheds are designed to be DIY projects, however we also offer a full install service at fixed prices should you prefer someone else to do this for you. Typically a shed of this size would take one of the installers we use one day. See shed options for pricing.

DIY Difficulty & Build Information

The Streamline SC5436 Single Carport is supplied as a kitset with three main components – roofing iron, fascia/gutter, and posts – for straightforward assembly.

DIY difficulty rating: Not specified in the source material.

Tools & Equipment Required

Tape measure
Shovel
Level
String line
Concrete
Timber for bracing
Foot protection
Eye protection
Helmet
Gloves
Hearing protection
Sun protection
Drill rivet gun
Ladder planks
60 mm hole drill
Silicone gun
Ladder

Assembly Instructions

Assembly instructions are available online (“Click here to view assembly instructions” in the original product information). No direct URL was provided in the supplied data.
