Duratuf Cardrona Lifestyle Shed

Product Overview

The Cardrona Shed is a premium New Zealand-made garden shed designed to provide stylish and secure storage for your property. Built to withstand local conditions, this durable storage shed combines high-tensile steel cladding with a robust timber frame for superior rigidity and weatherproofing.

• Robust Timber Framing: An innovative timber framing system offers unmatched strength and structural integrity compared to traditional steel channels.

• Secure Roller Door: A high and wide roller door combines versatility with added security, providing easy access for larger items while keeping valuable gear safe.

• Superior Weatherproofing: Designed to prevent water pooling and corrosion, the structure includes effective flashings, safety edge corners, and a large spouting connected to a downpipe.

• Durable Steel Cladding: Constructed with 0.4mm Armorsteel cladding and a multi-layered paint coating, the exterior is tough enough to resist extreme weather conditions.

• Versatile Interior: The internal timber frame allows for easy installation of shelves, workbenches, tool boards, and hooks to organize the space.

Available Accessories

• Floor Kit Options (for models under 10 m²): Includes ground treated H4 joists, a treadplate roller door threshold, and all required hardware, with either cut-to-size 17 mm H3 plywood sheets or cut-to-length thick H3.2 timber floorboards.

• Pedestrian Access Door: An inward-opening door measuring 810mm W x 1920mm H, available in fixed and opening configurations.

• Aluminium Joinery Window: Measuring 970mm W x 535mm H, available in fixed or opening configurations with the option of single or double glazing.

• Automatic Door Opener: A remote-controlled kit for convenient access (requires power supply to the shed).

• Clear Roof Panel: Provides UV-free natural daylight inside your shed, perfect for workshops where light is needed while the door is closed.

• Coastal Upgrade: Replaces standard cladding with Coastal grade cladding, featuring an extra thick layer of zinc-aluminium protection for harsh conditions.

• Very High Wind Upgrade Kit: An NZS 3604 compliant upgrade kit for Very High Wind Zones.

• Snow Load Upgrade Kit: Reinforces the inner roof structure to a 2kPa load rating, designed for higher elevation areas with severe snow to meet NZS 3604 standards.

These sheds are designed to be DIY projects, however we also offer a full install service at fixed prices should you prefer someone else to do this for you. Typically a shed of this size would take one of the installers we use *one day*. See shed options for pricing.

DIY Build & Installation

This shed is well suited to capable DIYers or builders, with precut timber framing and pre-formed steel components. The shed must be built in accordance with the building code, and framing, cladding, and flashings are supplied ready to assemble on a prepared base.

• DIY Difficulty Rating: Intermediate to advanced DIY; recommended as a 2–3 person job over a couple of days.
• Construction Method: Precut timber framing to nail together; wall and roof steel sheets to screw to the frame; flashings and door tracks to screw or rivet on; bolt-down kit available for securing to a concrete base.

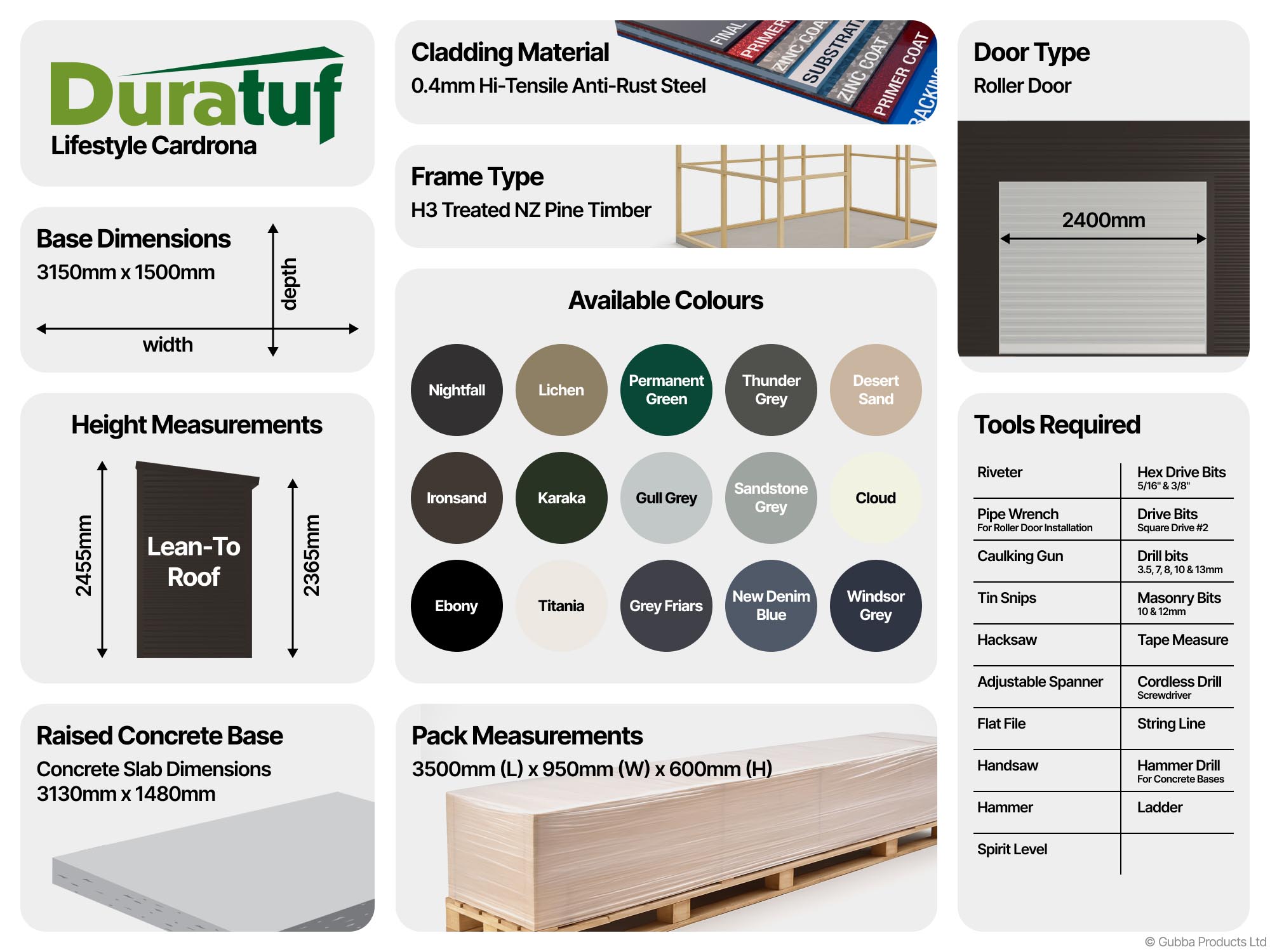

Tools Required

• Power drill
• Drill bits 3.5mm and 10mm
• Square, slotted and Phillips driver bit
• Hex drive 5/16
• Riveter (Duratuf riveter supplied in kit)
• Hammer
• Nail punch
• Tape measure
• Ladder
• Adjustable spanners x 2
• String line / length of string
• Level
• Hand saw
• Caulking gun
• Tin snips
• Flat file
• Wrench
• Skillsaw or jigsaw / multitool (for floor only)
• Masonry drill and 10mm masonry bit (for bolt down kit only)
• Utility knife

Assembly Instructions

For full step-by-step guidance, refer to the latest assembly manual here: View Duratuf Cardrona Lifestyle Shed Instructions.
