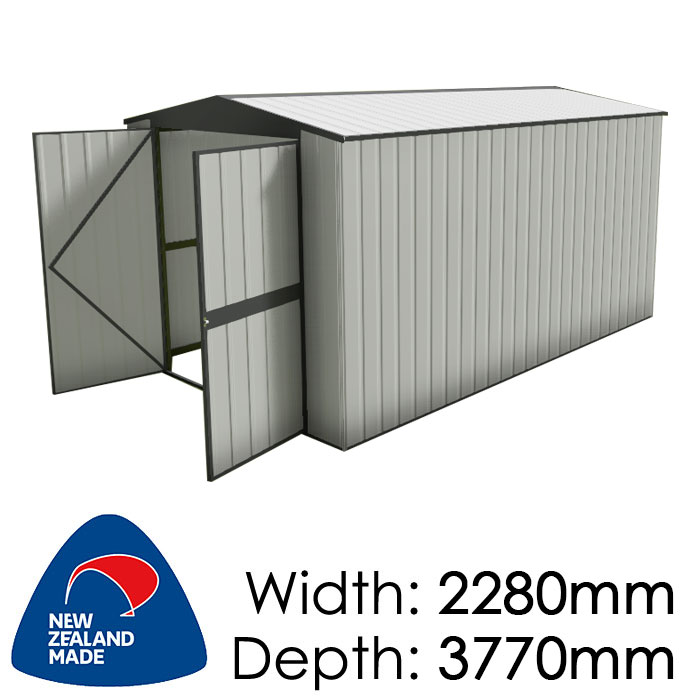

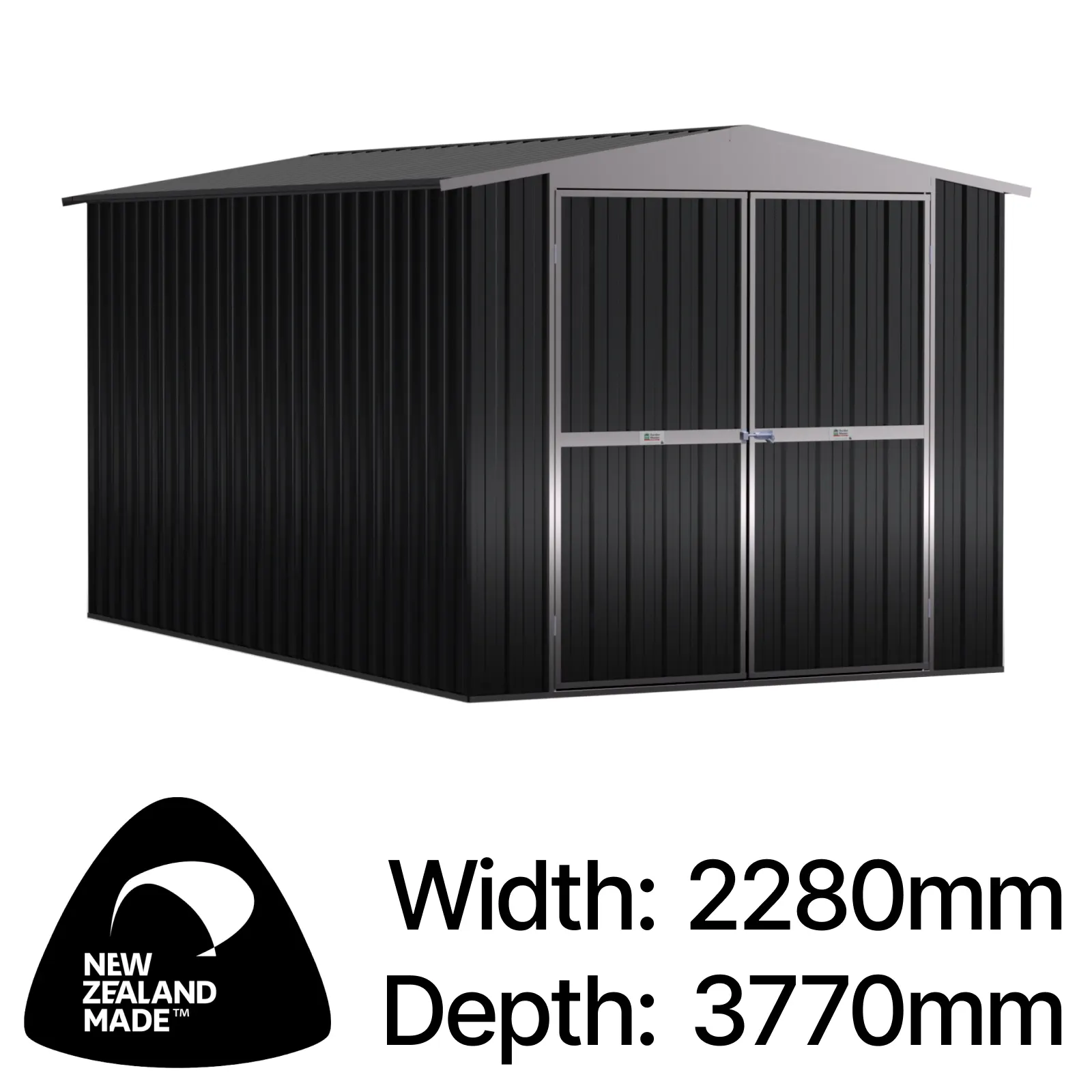

Garden Master GM3823EE Frame Master Garden Shed

Customisation Options

The Garden Master GM3823EE Frame Master Garden Shed is highly configurable, allowing you to tailor its appearance and layout to suit your property and how you use your outdoor space.

• Cladding Finish: Choose between Alu‑Zinc or coloured steel.
• Comprehensive Colour Selection: Mix and match colours for walls, roof, trim, and doors from a broad palette including Desert Sand, Grey Friars, Gull Grey, Iron Sand, Karaka, Sandstone, Smooth Cream, Ebony, Slate Grey, and Titania.

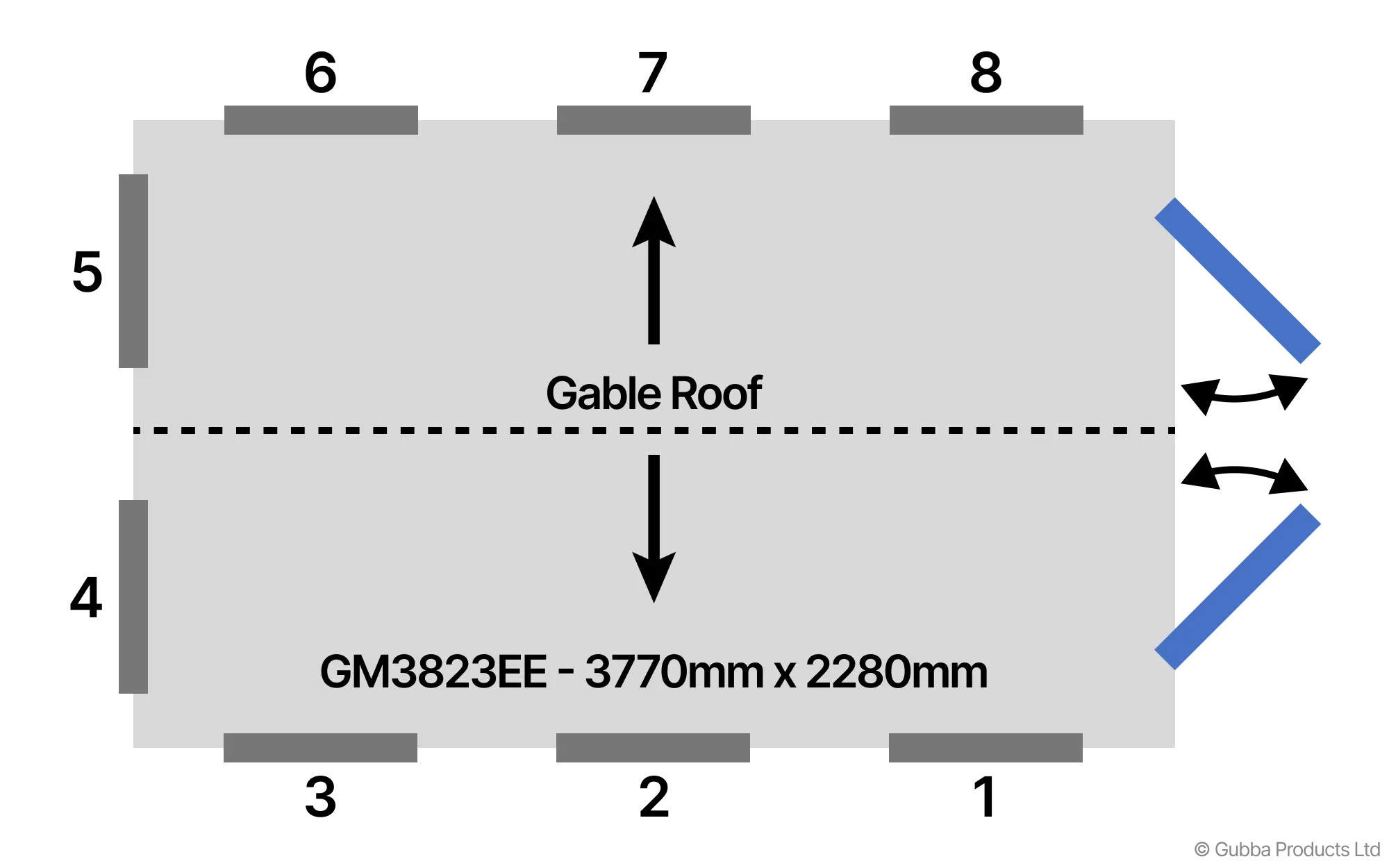

• Door & Window Positioning: Door and window positions are easy to configure so you can optimise access, natural light, and wall space for storage.
• Extra Wall Height: Optional +150mm or +300mm wall height to better accommodate taller users or equipment.
• Window Types: Combine fixed and louvre windows to balance light and ventilation in the way that works best for your site.
• Door Upgrades: Options such as Securi‑Door (double padbolt door) allow you to increase security and tailor entry to your needs.

With its wide choice of colours, layout flexibility, and height options, this shed can be configured to fit comfortably into most backyards while meeting specific storage and access requirements.

Accessories & Add‑Ons

Enhance the functionality, security, and comfort of your Garden Master GM3823EE Frame Master Garden Shed with the following optional upgrades and accessories:

• Wall, Roof, Trim & Door Colour Options
  Choose from a wide range of colours (including Desert Sand, Grey Friars, Gull Grey, Iron Sand, Karaka, Sandstone, Smooth Cream, Ebony, Slate Grey, and Titania) to match your shed to your home and surroundings.
• Corner Flashing Upgrade
  Corner trim upgrade for a cleaner, more finished look and added protection to external corners.
• Wooden Floor Kitset
  Precut runners and floorboards that can be easily nailed together to create a dedicated timber floor inside your shed.
• Concrete Floor Bolt Package
  Bolt sets for flat or recessed concrete floors to securely fasten your shed to a solid base.
• Peg Down Kit
  Peg kit for anchoring the shed to the ground where a conventional concrete slab is not used.
• Fixed Windows
  Add 1–4 fixed windows to increase natural light and visibility inside the shed.
• Louvre Windows
  Add 1–4 louvre windows for adjustable ventilation while still helping to keep rain out.
• Skylite Roof Sheets
  Add 1–2 skylite roof sheets to bring extra overhead light into the shed without sacrificing wall space.
• Cabin Hooks
  1–2 cabin hooks to hold the doors open securely, improving convenience when moving equipment in and out.
• Lock T‑Handle
  Lockable T‑handle for improved door security and peace of mind.
• Securi‑Door (Double Padbolt Door)
  Enhanced door option with padbolt-ready double doors, allowing you to fit your own padlocks for robust security.
• Extra Wall Height (+150mm or +300mm)
  Increase the wall height for additional headroom and improved storage of taller items.

Additional accessories mentioned include optional windows, skylights, corner protectors, shelves, tool hooks, cabin hooks, and locking T‑handles, allowing you to further organise and secure your shed interior.

Construction & DIY Information

These sheds are designed to be DIY projects, however we also offer a full install service at fixed prices should you prefer someone else to do this for you. Typically a shed of this size would take one of the installers we use one day. See shed options for pricing.

The Garden Master GM3823EE Frame Master Garden Shed is designed for straightforward installation by someone with good DIY skills. The high tensile steel sheets and channels, together with the internal aluminium frame, are engineered to go together using common tools and simple fixing methods.

DIY Difficulty Rating

• Suitable for a competent DIYer
• Allow approximately two days for installation

Construction Overview

• Wall sheets are joined with rivets, with top and bottom channels drilled and riveted.
• Once all wall and roof panels are assembled, stand the wall panels upright, then drill and rivet them together.
• Fit the roof panels in the same manner and drill and rivet the flashings to the shed.
• Attach the door using the supplied hinges.
• If using the optional wooden floor kit, assemble the precut runners and floorboards first and nail them together with a hammer before starting on the shed installation.

Tools Required

• Power drill
• 3.3mm drill bits
• Riveter
• Hammer (for floor kit)
• Tape measure
• Ladder or saw stool
• Non‑slip gloves
• Eye protection
• Saw horses

Assembly Instructions

For the latest, detailed assembly instructions for this model, please refer to the official manual:

View the Garden Master GM3823EE Frame Master Garden Shed Instructions
