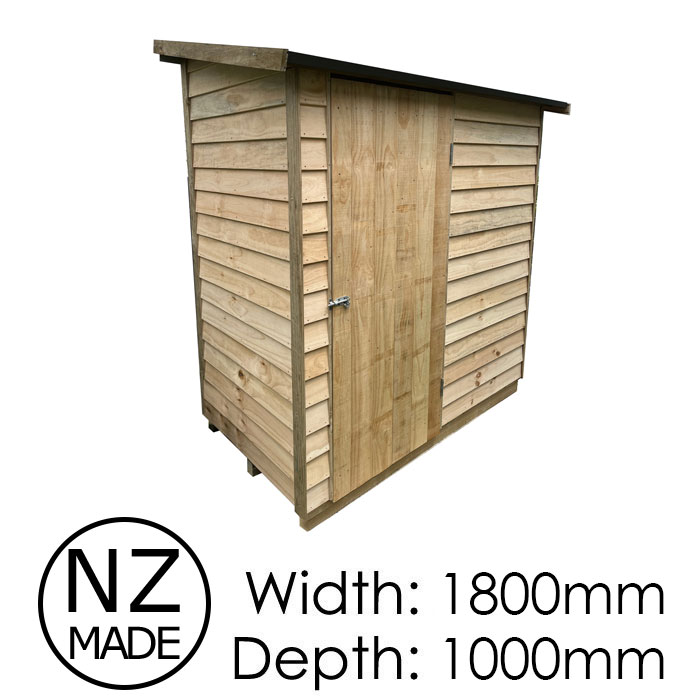

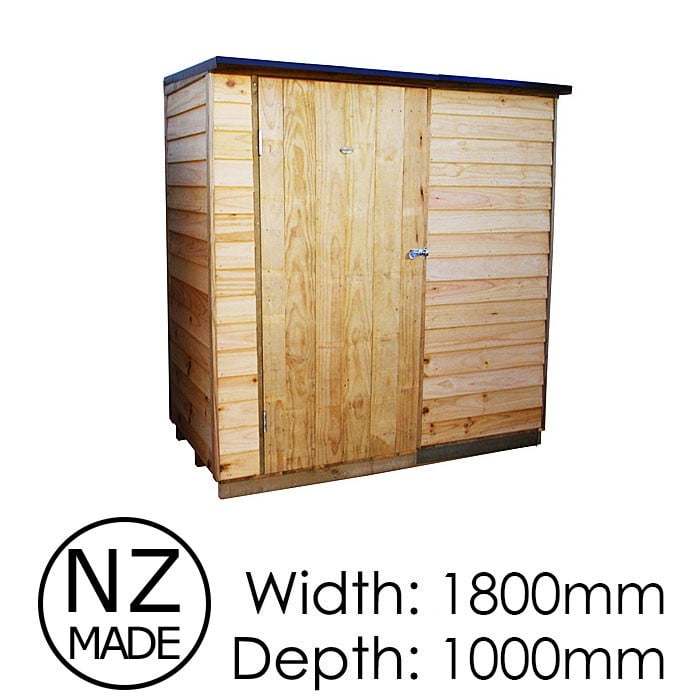

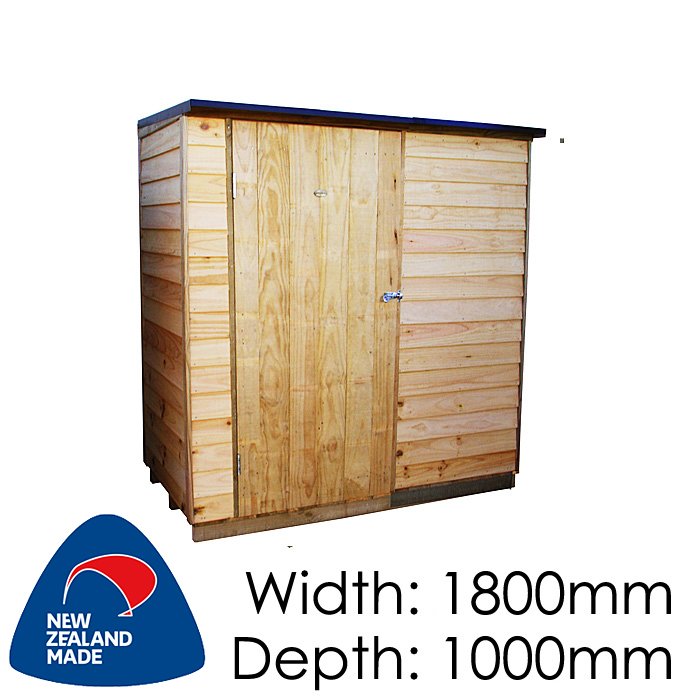

Pinehaven Ruahine Timber Garden Shed

Customisation Options

The Pinehaven Ruahine Timber Garden Shed offers flexibility so you can tailor it to both your site and how you plan to use it.

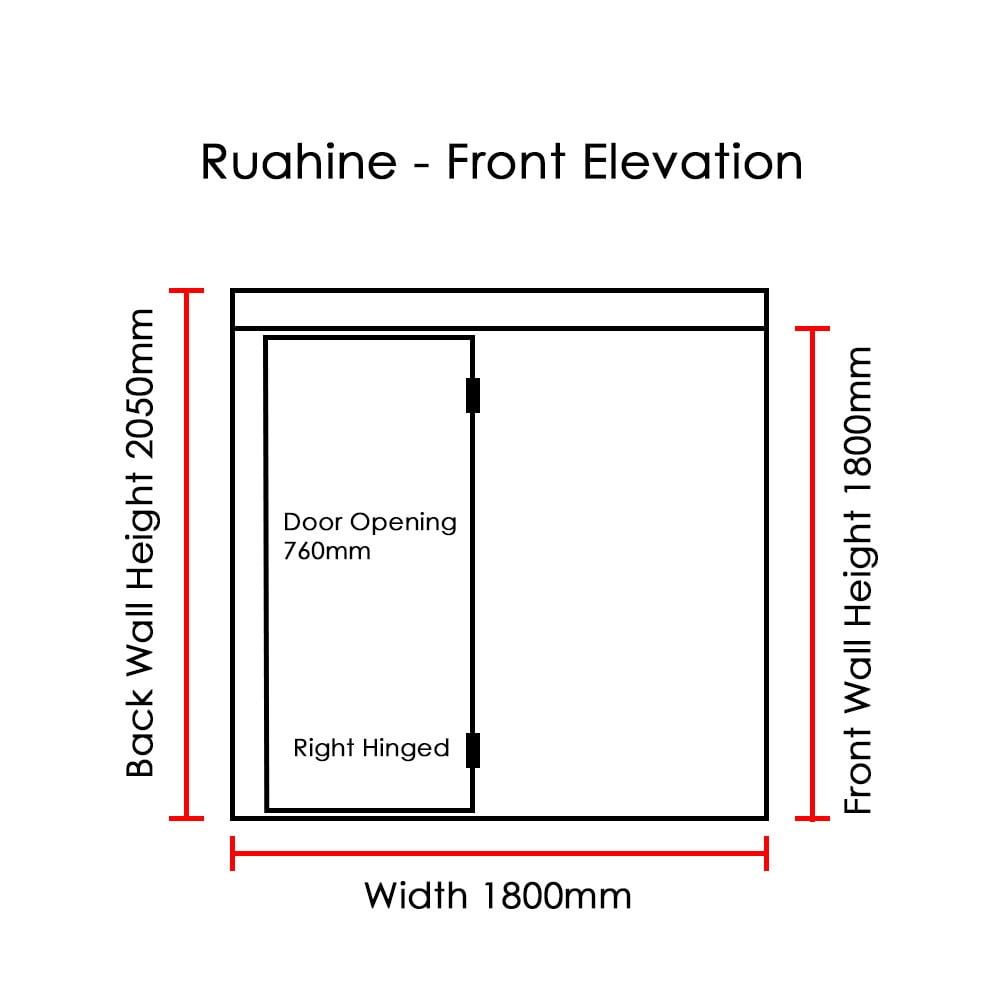

• Door placement: Standard door is on the long wall, but it can be moved to the end wall if you don’t have space for it to swing open along the side.
• Roof colour selection: Choose from a standard Karaka roof or a wide range of alternative colours to complement your home and fencing.
• Door configuration: Select the standard single door or upgrade to a double door for easier movement of bulkier items.
• Window options: Add fixed or opening aluminium windows (in your choice of quantity) to balance natural light and ventilation.
• Internal storage layout: Optional timber shelving in 1000mm x 300mm sections allows you to create organised storage zones.
• Exterior finish: The shed is supplied unpainted so you can paint or stain it in colours that match your house or garden structures, while protecting the timber.

Accessories & Optional Upgrades

Enhance the usability and finish of your Pinehaven Ruahine Timber Garden Shed with the following options:

• Wooden Floor Kit
  Precut timber runners and floorboards that can be nailed together to create a solid, integrated shed floor.
• Roof Colour Options
  Standard Karaka roof or a wide range of alternative colours (Sandstone Grey, Titania, New Denim Blue, Iron Sand, Gull Grey, Ebony, Grey Friars, Flax Pod, Slate, Thunder Grey, Windsor Grey) to match your home and landscaping.
• Main Door Upgrade
  Standard single door or upgrade to a double door for a wider opening and easier access to larger items.
• Aluminium Fixed Windows
  Choose 1 or 2 fixed aluminium windows to bring natural light into the shed while maintaining security.
• Aluminium Opening Windows
  Choose 1 or 2 opening aluminium windows to provide natural light plus ventilation for a drier, fresher interior.
• Fire-Retardant Building Paper (Wall Cladding)
  Optional wall cladding with fire-retardant building paper for added protection and peace of mind.
• Timber Shelving (1000mm L x 300mm D, including brackets)
  Available in 1 or 2 sets to organise smaller tools, paints, and gardening supplies off the floor.

These sheds are designed to be DIY projects, however we also offer a full install service at fixed prices should you prefer someone else to do this for you. Typically a shed of this size would take one of the installers we use *one day*. See shed options for pricing.

DIY Construction & Installation

The Pinehaven Ruahine Timber Garden Shed is supplied as a modular kitset of premade panels with all hardware included. Assembly is straightforward for someone with good DIY skills, and a competent DIYer should allow about one day for installation.

DIY difficulty rating

• Intermediate DIY level
• Recommended as at least a 2-person job for handling panels and roof sheets safely

Construction overview

• Assemble the treated framing clad with pine weatherboards using the modular panel system.
• Join wall panels together with silicone and bolts, then silicone and nail the beads.
• Install the optional precut wooden floor kit by nailing runners and floorboards together on a level foundation.
• Screw roof sheets and flashings to the shed.
• Hang the door and fit any windows and accessories selected.
• Fill nail holes with filler, then paint with a water-based paint or stain with an oil-based stain to protect the timber.

Tools required

• Power drill
• Drill bits 3.2mm
• Hex drive 3/8
• Riveter
• Hammer
• Nail punch
• Tape measure
• Ladder or saw stool
• Level
• Caulking gun
• String line / length of string
• Masonry drill and 10mm masonry bit (for bolt-down kit only)

Assembly instructions

For full, up-to-date assembly details, refer to the latest instructions here:
Pinehaven Ruahine Timber Garden Shed – Installation Guide
